A 500 kg rated-load mini tracked loader with dual pilot controls, closed-loop hydraulic drive and a configurable undercarriage for demanding overseas applications.

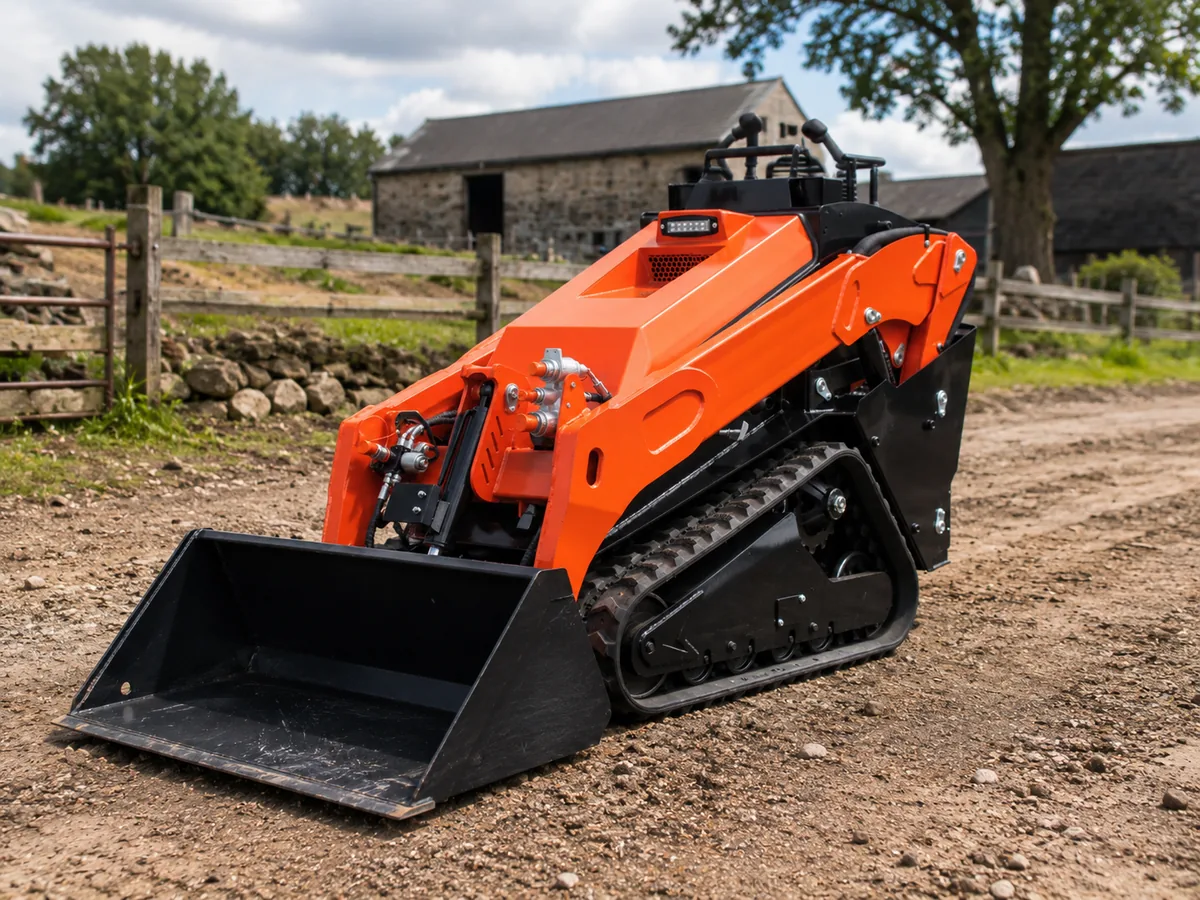

View the V1000 from multiple working angles, including the triangular undercarriage, auxiliary hydraulic connections, bucket geometry and compact rear structure.
The V1000 is positioned for buyers who need compact dimensions, tracked mobility and a hydraulic platform capable of supporting varied jobsite tools.
Loading, cleanup and material movement across farm lanes, yards and livestock facilities.
Ground preparation, garden maintenance and property work with reduced surface disturbance.

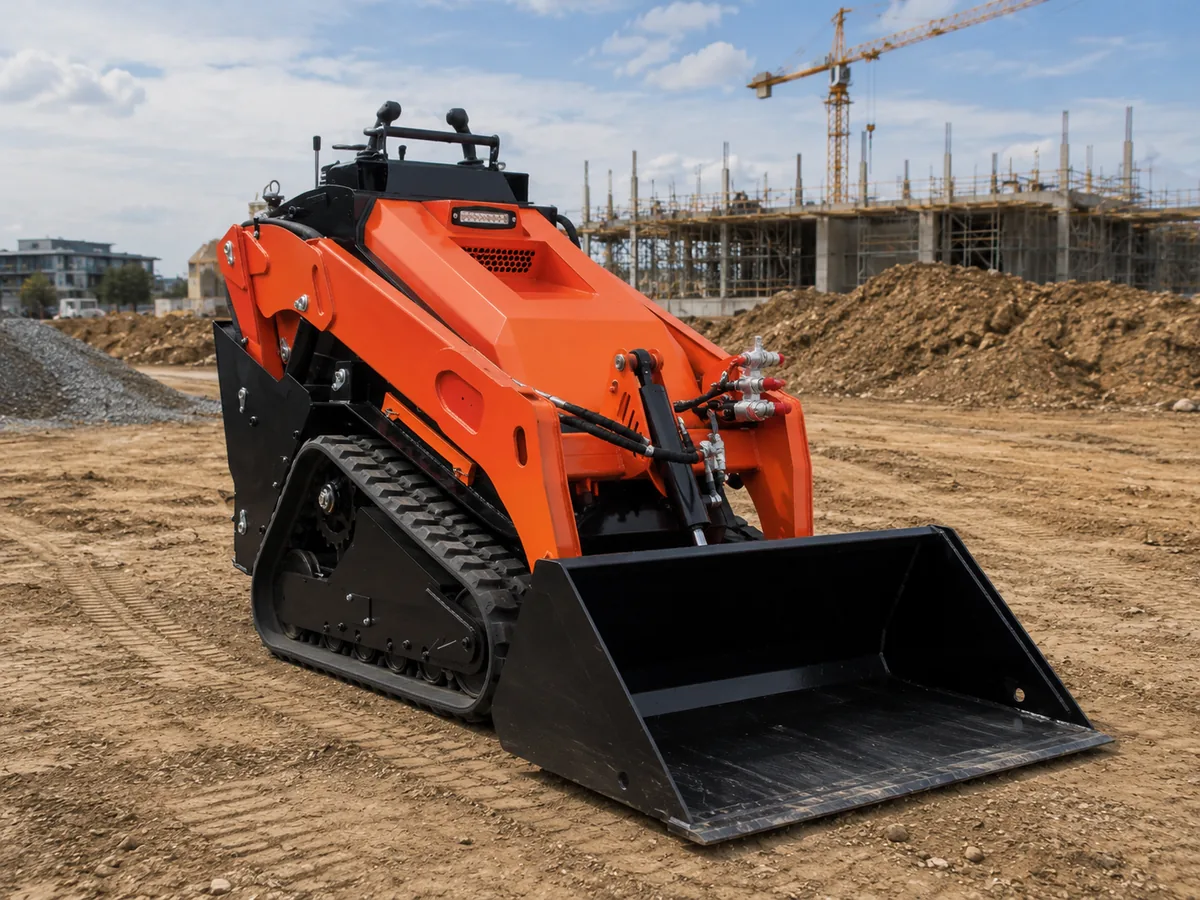

Site cleanup, trench support, road maintenance and material handling in compact work zones.
Steel-track configuration available for abrasive ground, demolition areas and higher-wear applications.
Precise pilot controls, closed-loop hydraulics, strong tracked mobility and service-friendly access help the V1000 work efficiently across farms, landscaping projects, construction sites and demanding attachment applications.

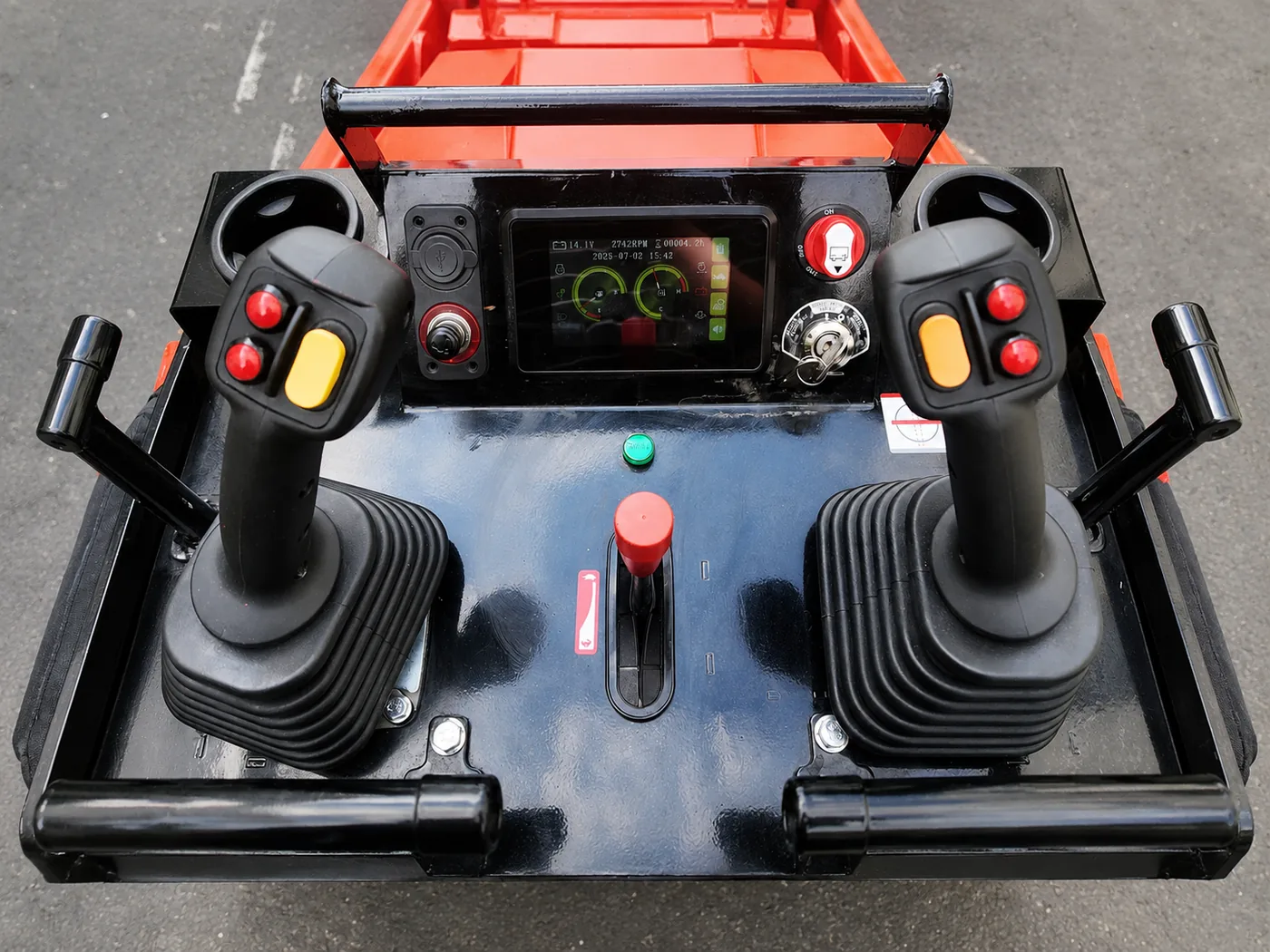

Dual pilot handles combine travel and loader-function control for lighter, more precise operation. The Lonking pilot system supports responsive movement during landscaping, farm work and confined-site operation.

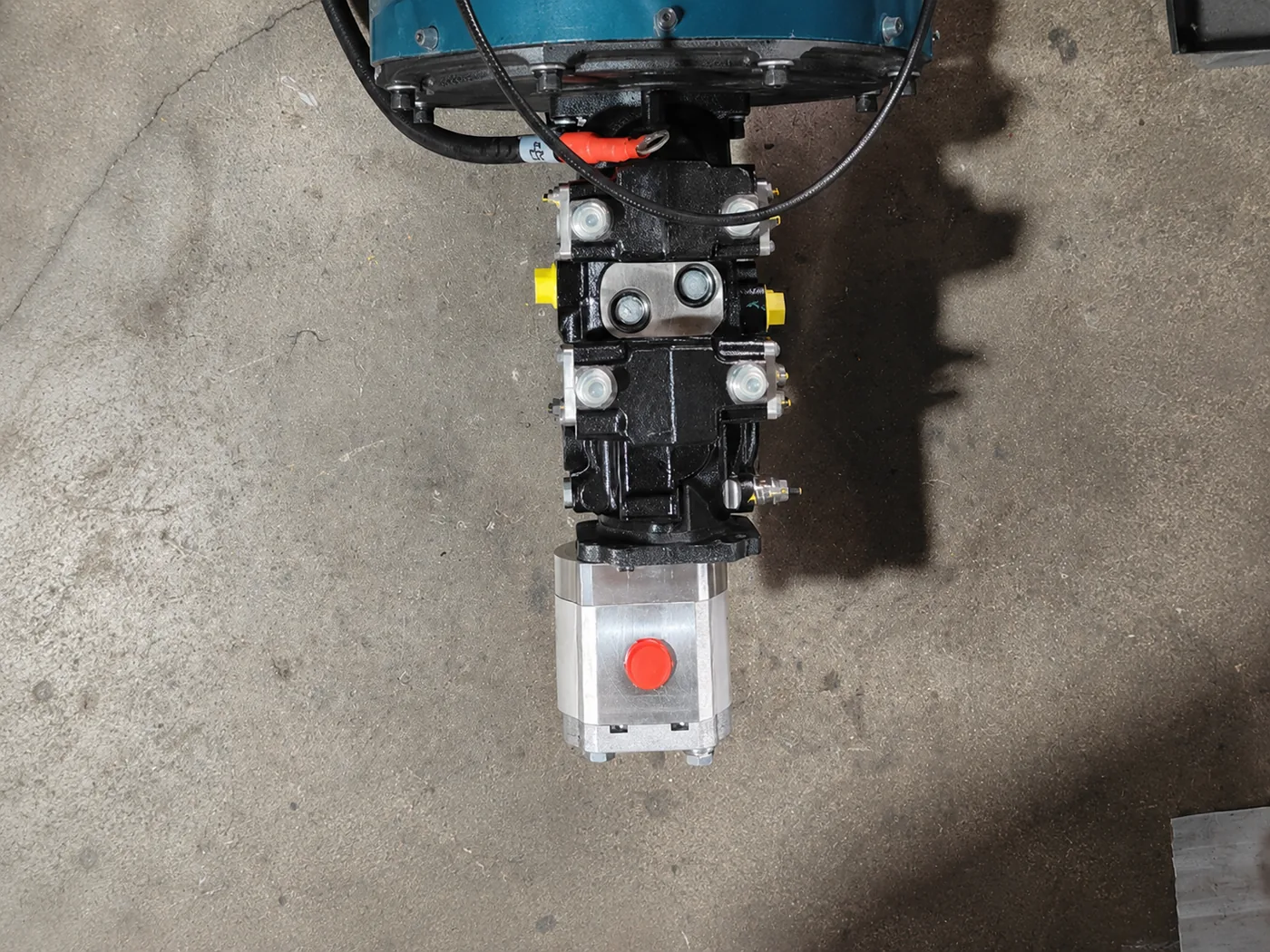

A Hansa closed-loop tandem pump works with a gear pump to support travel, lifting and attachment functions. This closed-loop hydraulic system is designed for stable power transfer during demanding work cycles.
Piston travel motors provide consistent drive performance and strong traction across slopes, gravel, mud and loose ground. The system suits compact track loader buyers expecting frequent or higher-load operation.

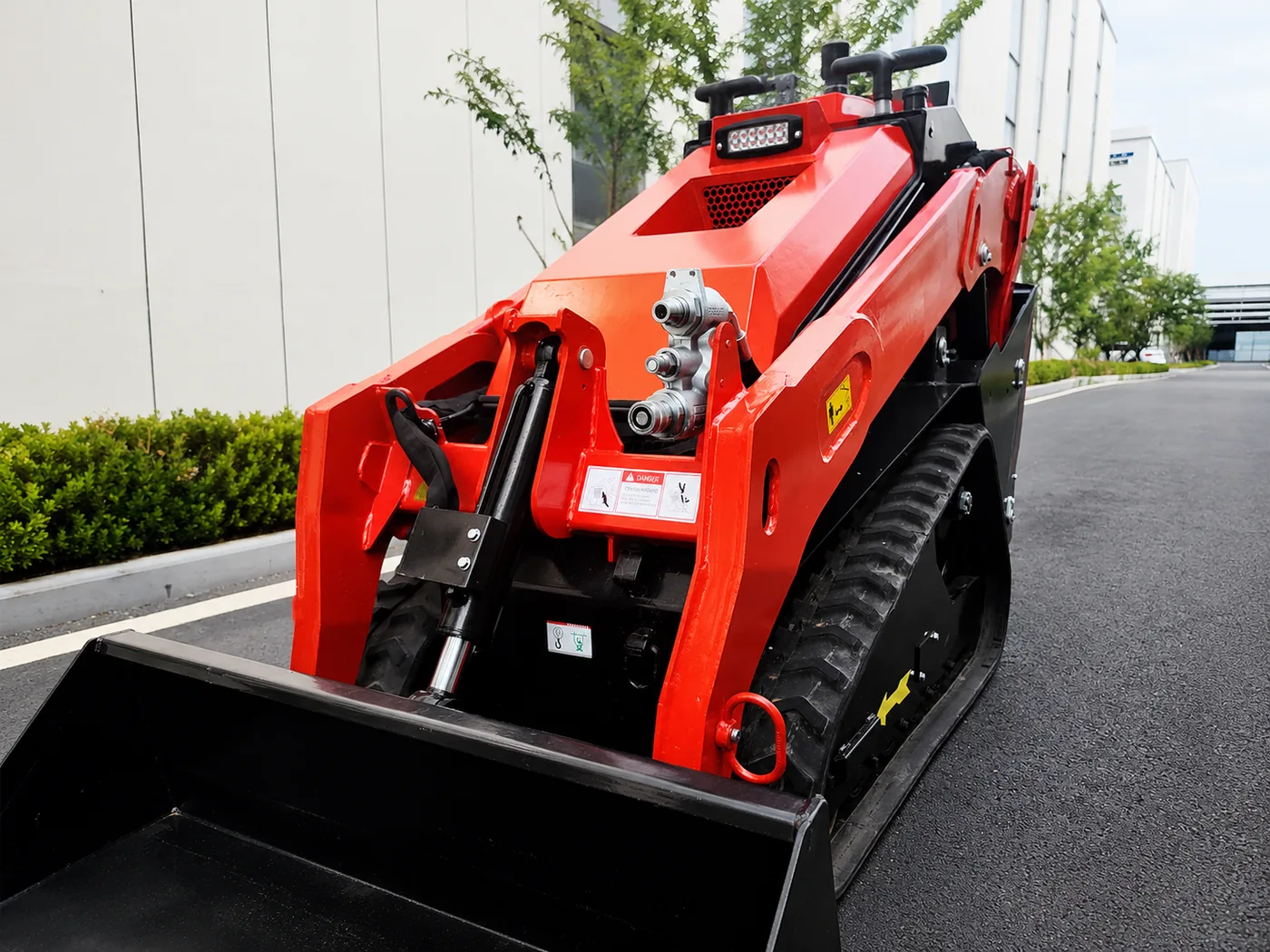

The quick attach system includes hydraulic pressure release to simplify attachment changes. Buckets, augers, breakers, sweepers, trenchers, mowers and grapples can be matched to the required interface and flow.

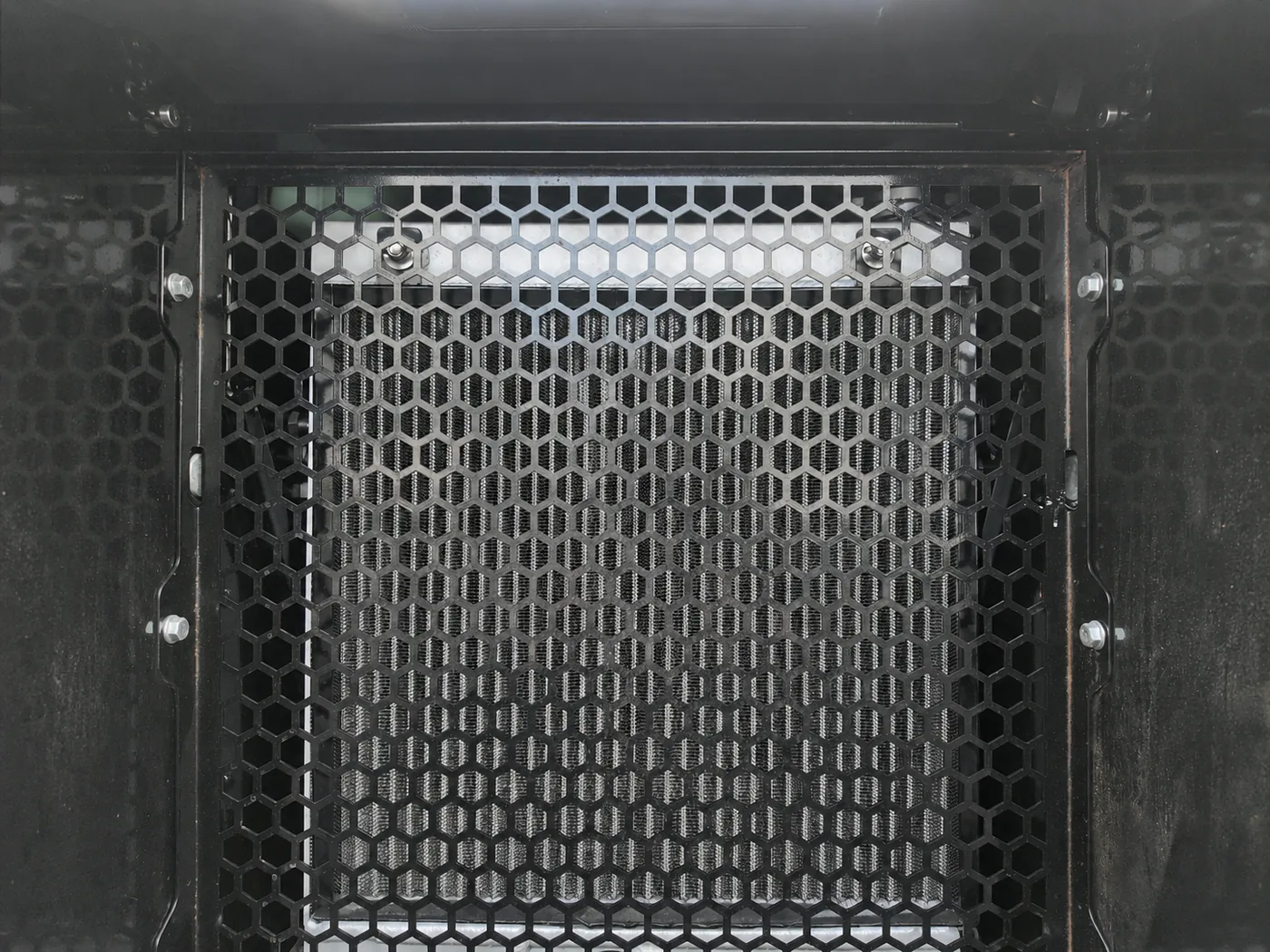

The oil cooling system supports both engine and hydraulic temperature management. It helps maintain operating consistency during hot weather, extended shifts and attachment-intensive work.

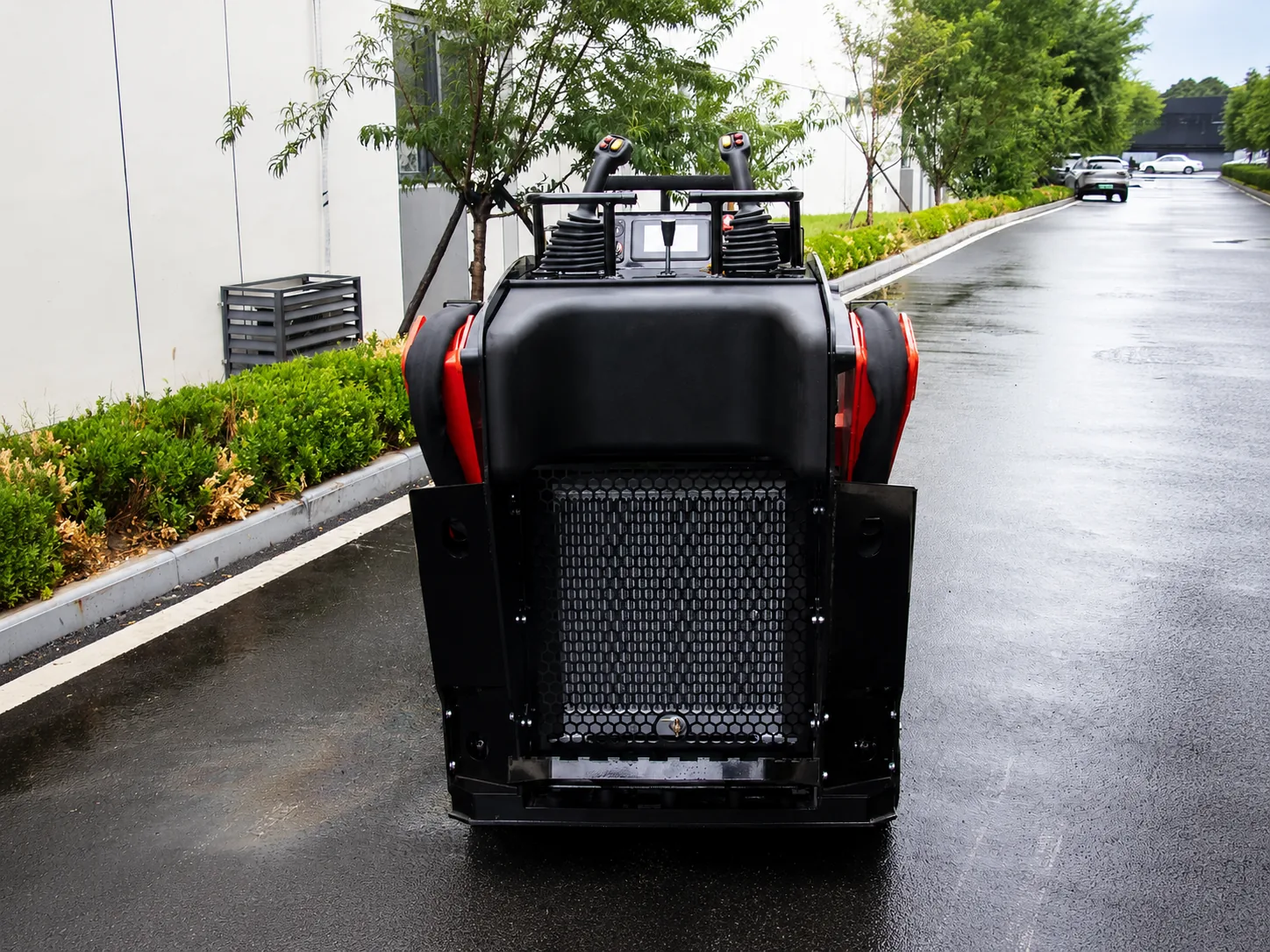

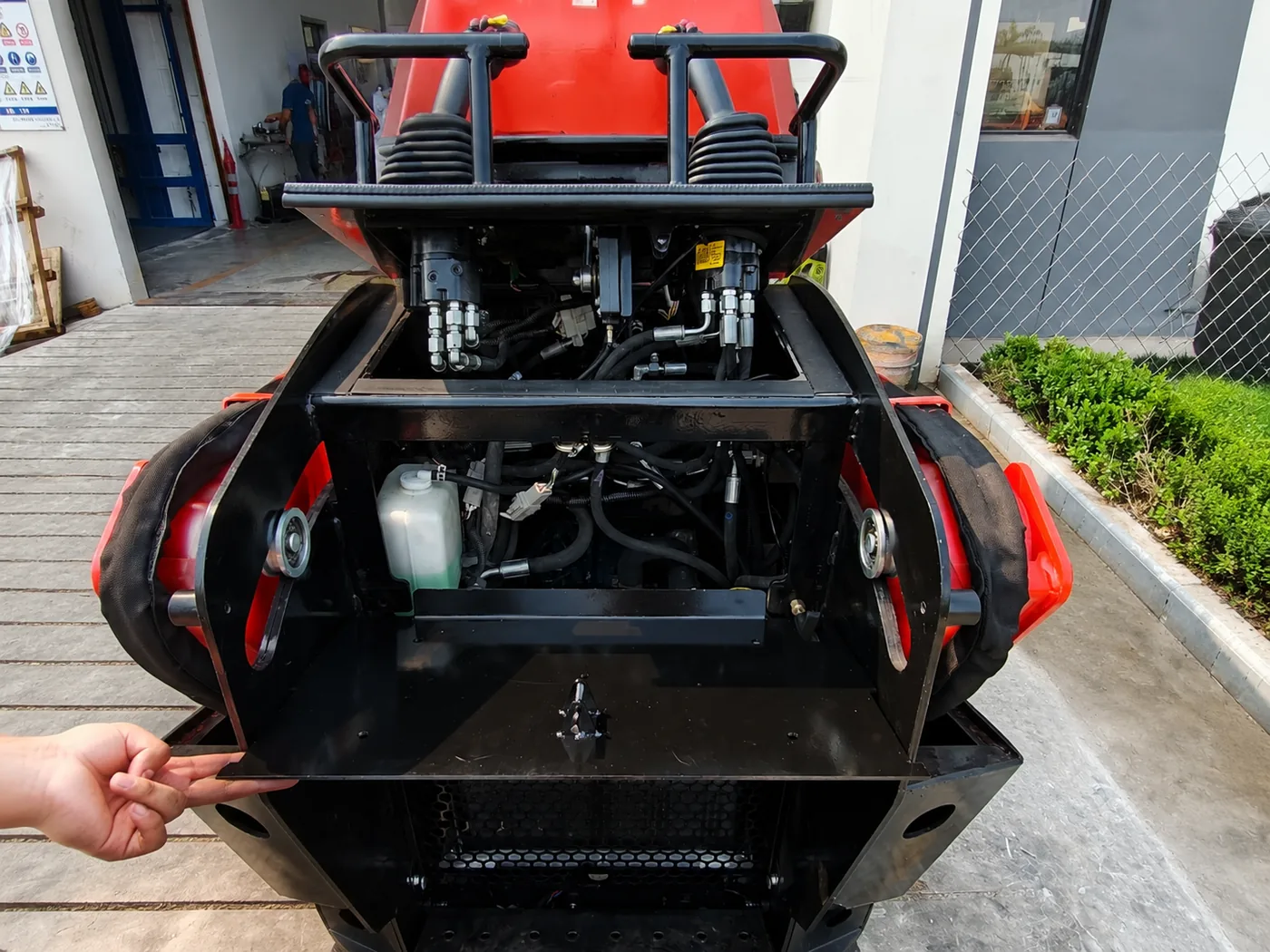

The operator platform opens to expose hydraulic lines, electrical components and service points. Technicians can inspect core systems without removing large body panels.

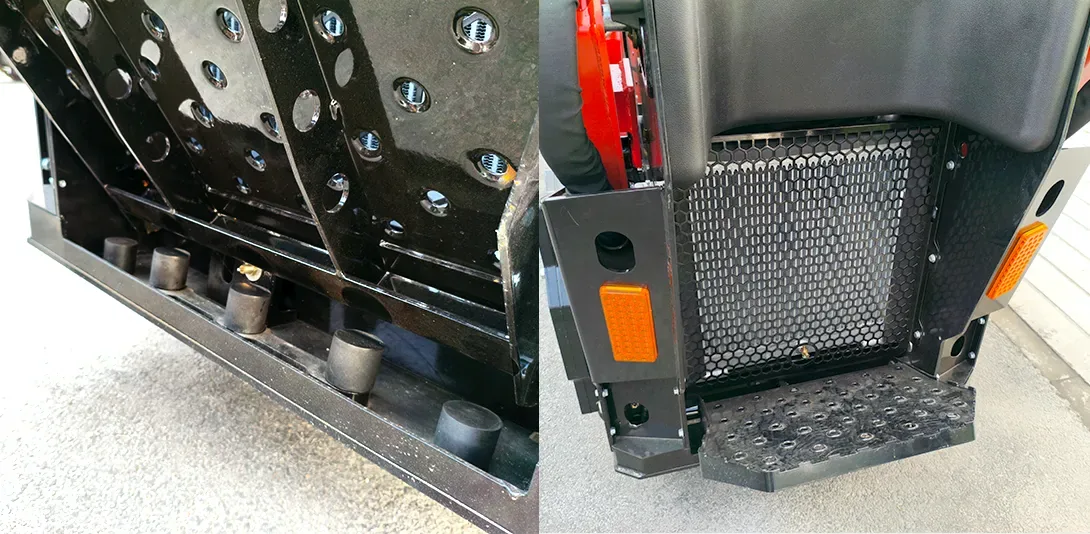

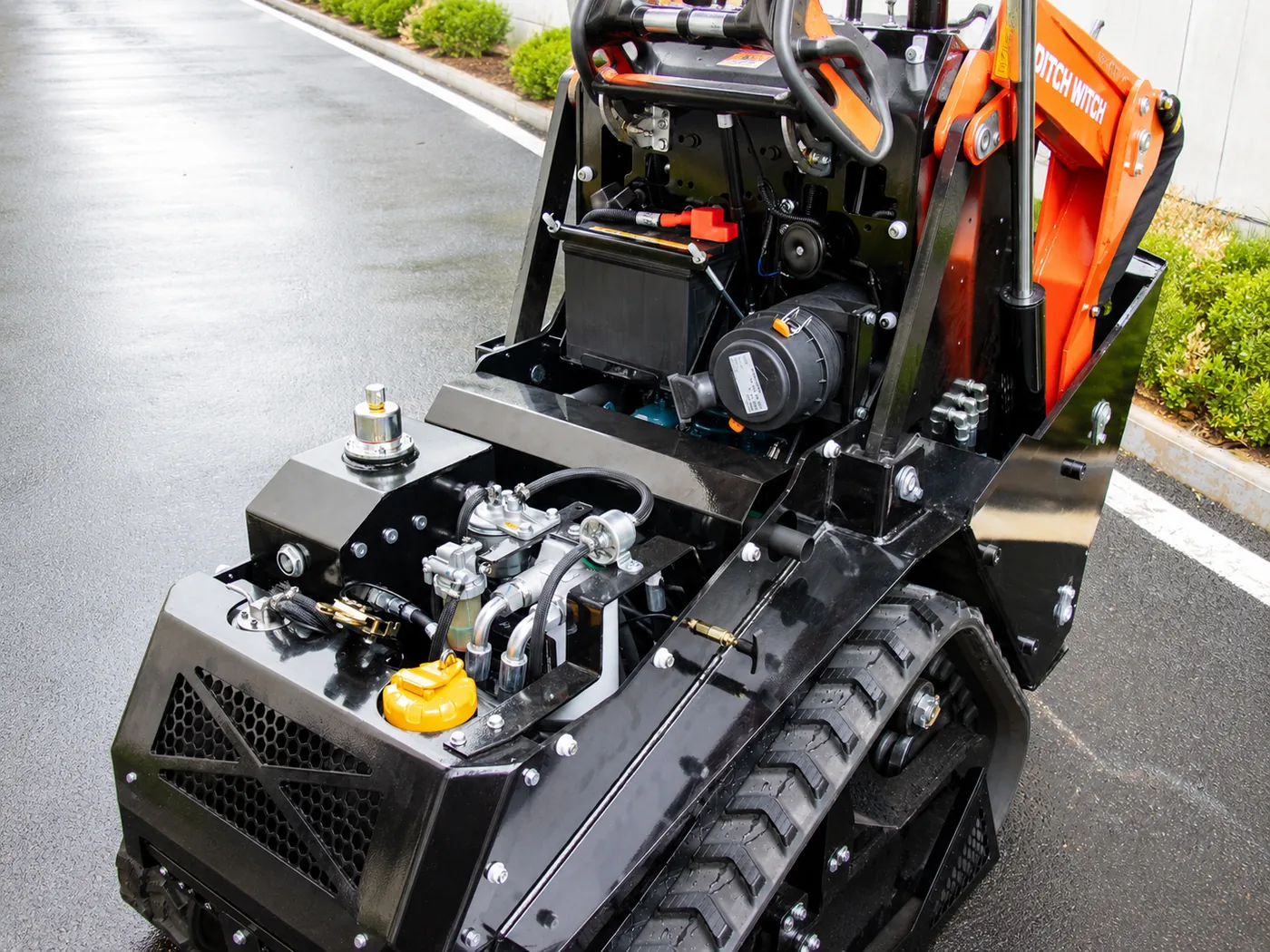

Removable side covers improve access for routine checks and maintenance. Faster access can reduce service time for machines used regularly on farms, jobsites and municipal projects.

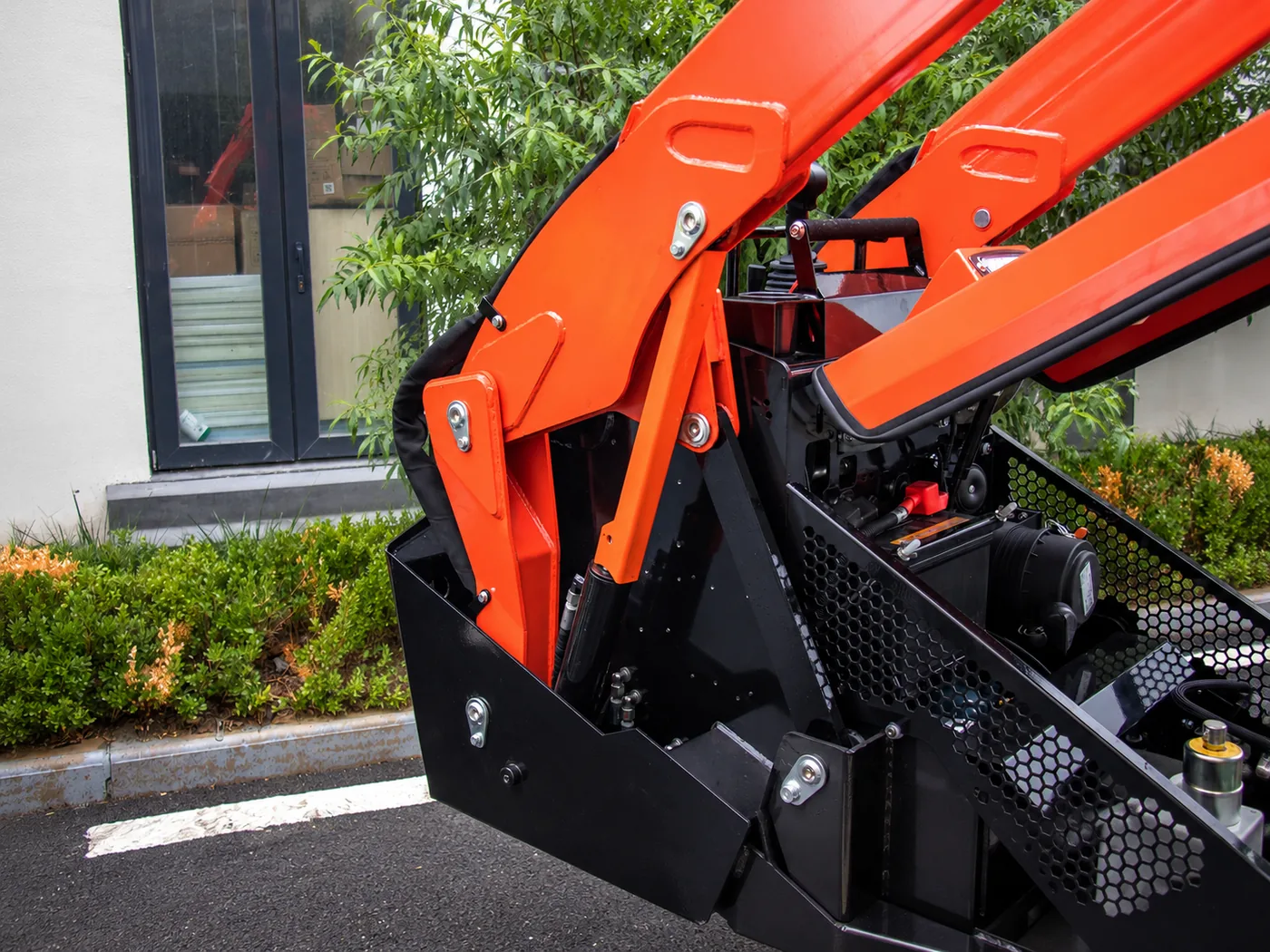

The maintenance lock helps prevent unintended lift-arm descent while the machine is being inspected. It provides an important mechanical safeguard for service personnel.
Padded contact areas reduce impact against hard structures during travel and turning. This operator-protection detail improves comfort during long shifts and work on irregular ground.

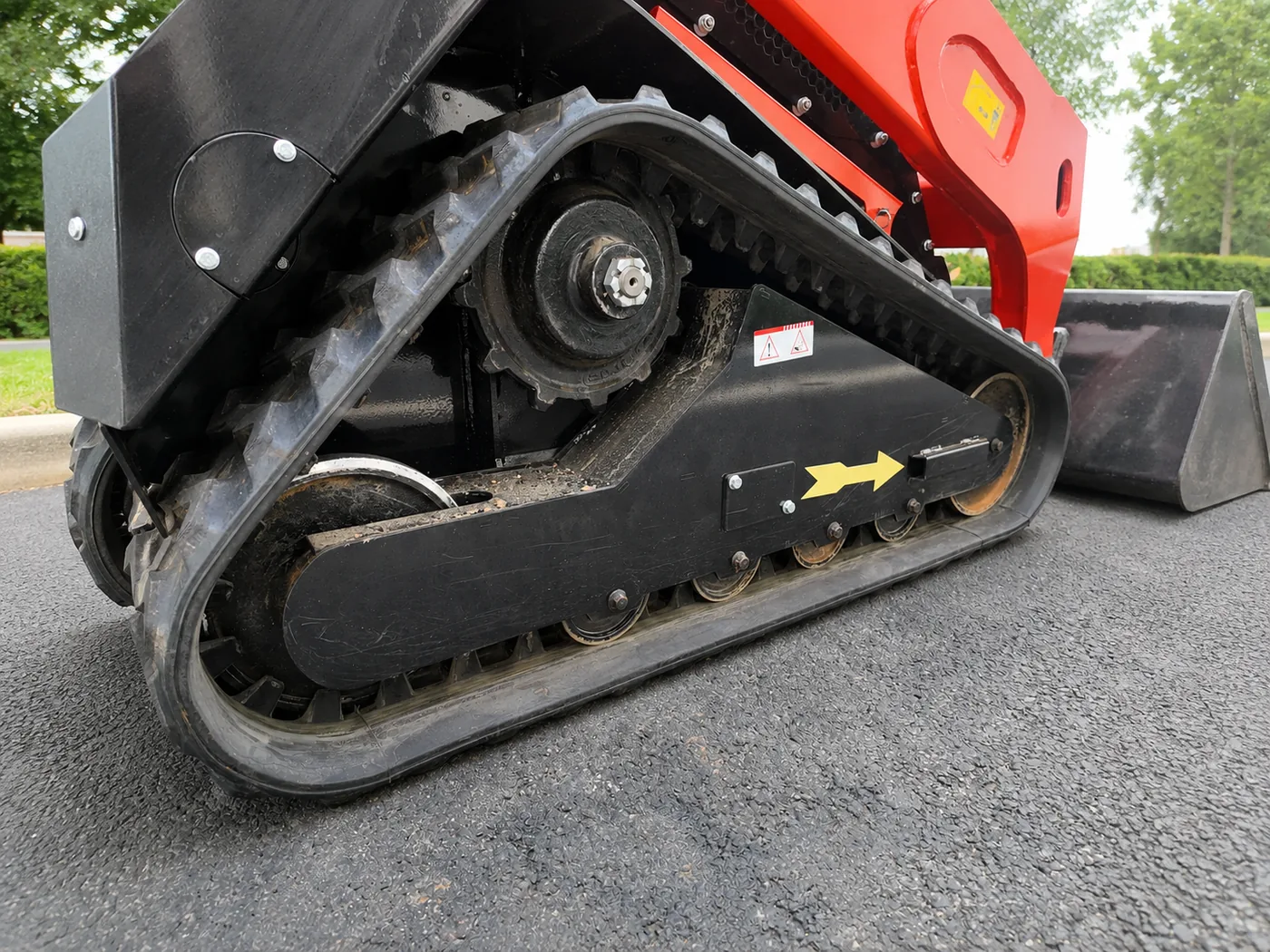

Dual guide wheels and a triangular track layout create a stable contact profile and strong terrain capability. The tracked skid steer loader is suited to mud, gravel, slopes and changing construction surfaces.

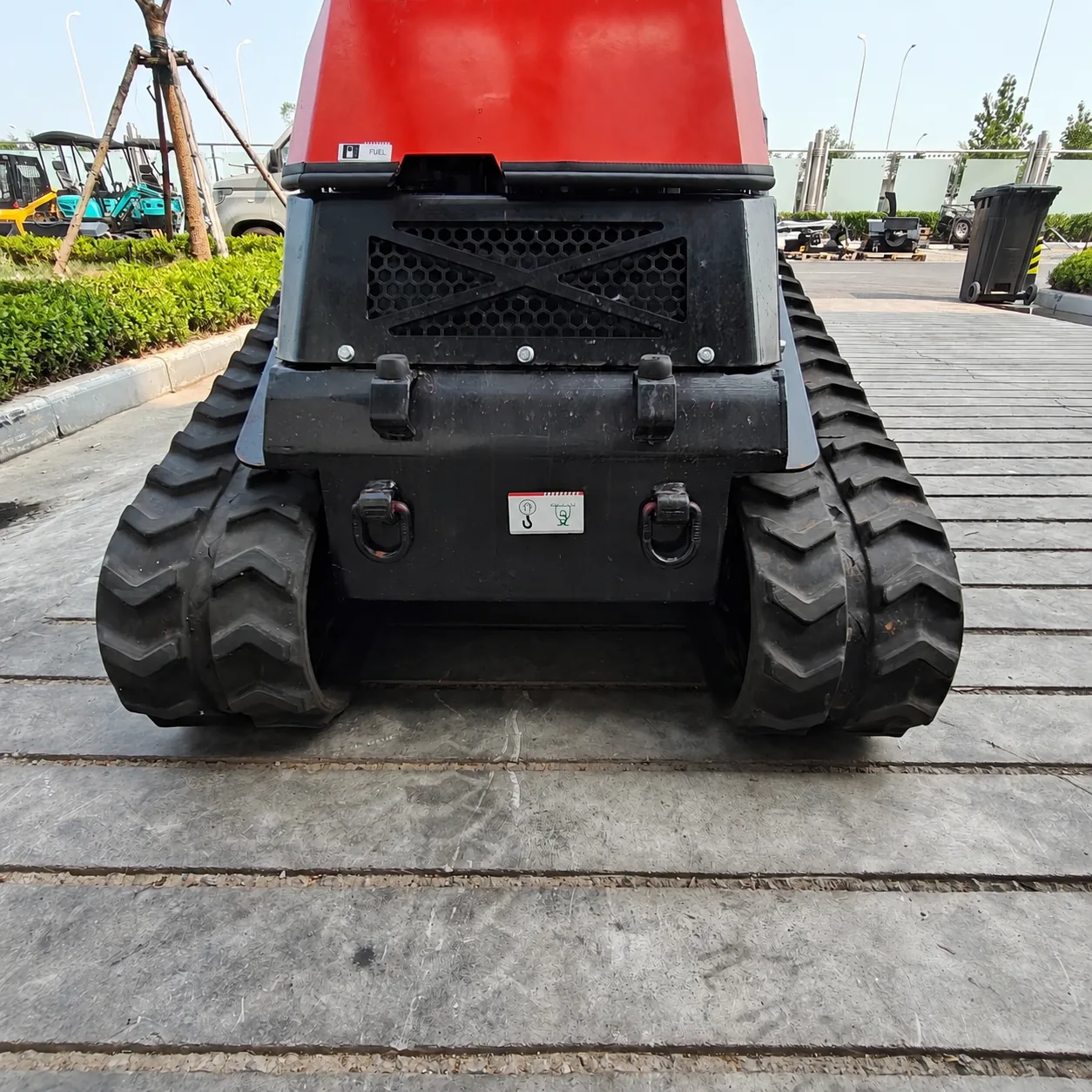

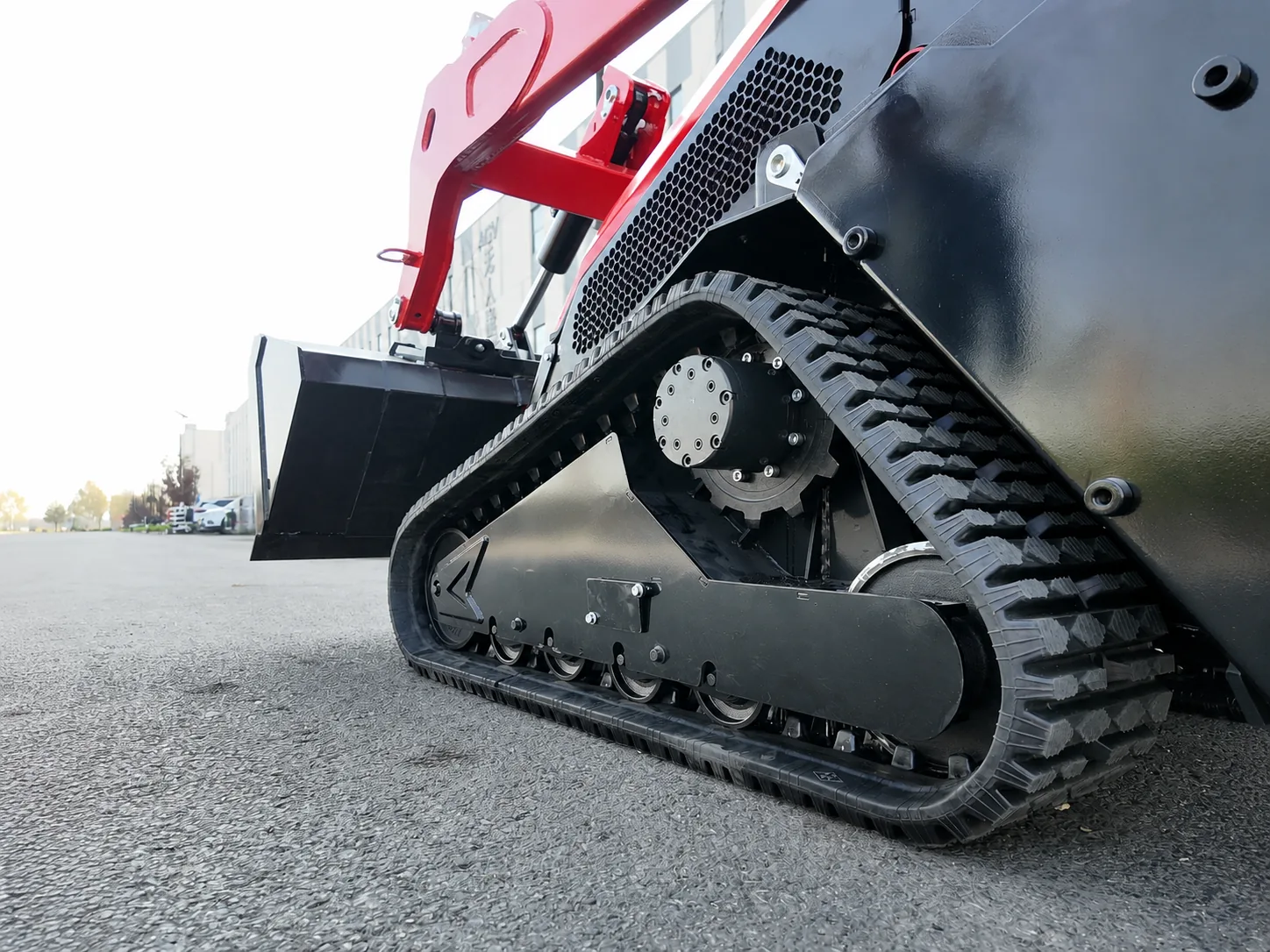

The standard 230 mm rubber track increases ground contact and supports stable travel. It also helps reduce disturbance on lawns, estate grounds, farms and maintained surfaces.
Choose the track setup according to ground conditions, surface protection and wear resistance requirements. Final track configuration should be confirmed before quotation.
The parking pedal uses gravity sensing to support safer stops and operator access. It adds an extra layer of protection during short pauses and entry or exit from the platform.

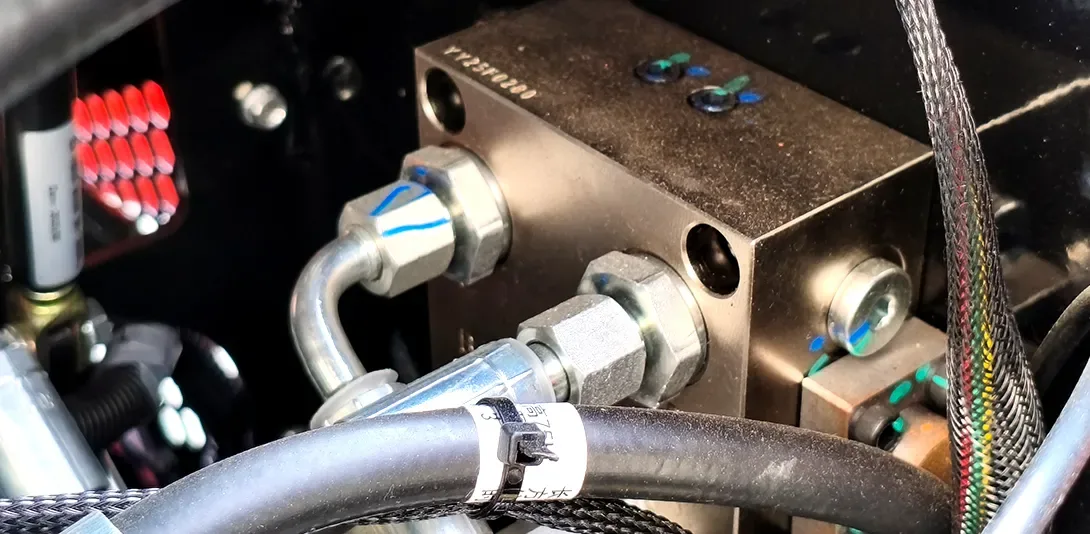

A balance valve supports smoother lifting, lowering and attachment movement. The controlled response is useful for material handling and more precise jobsite work.

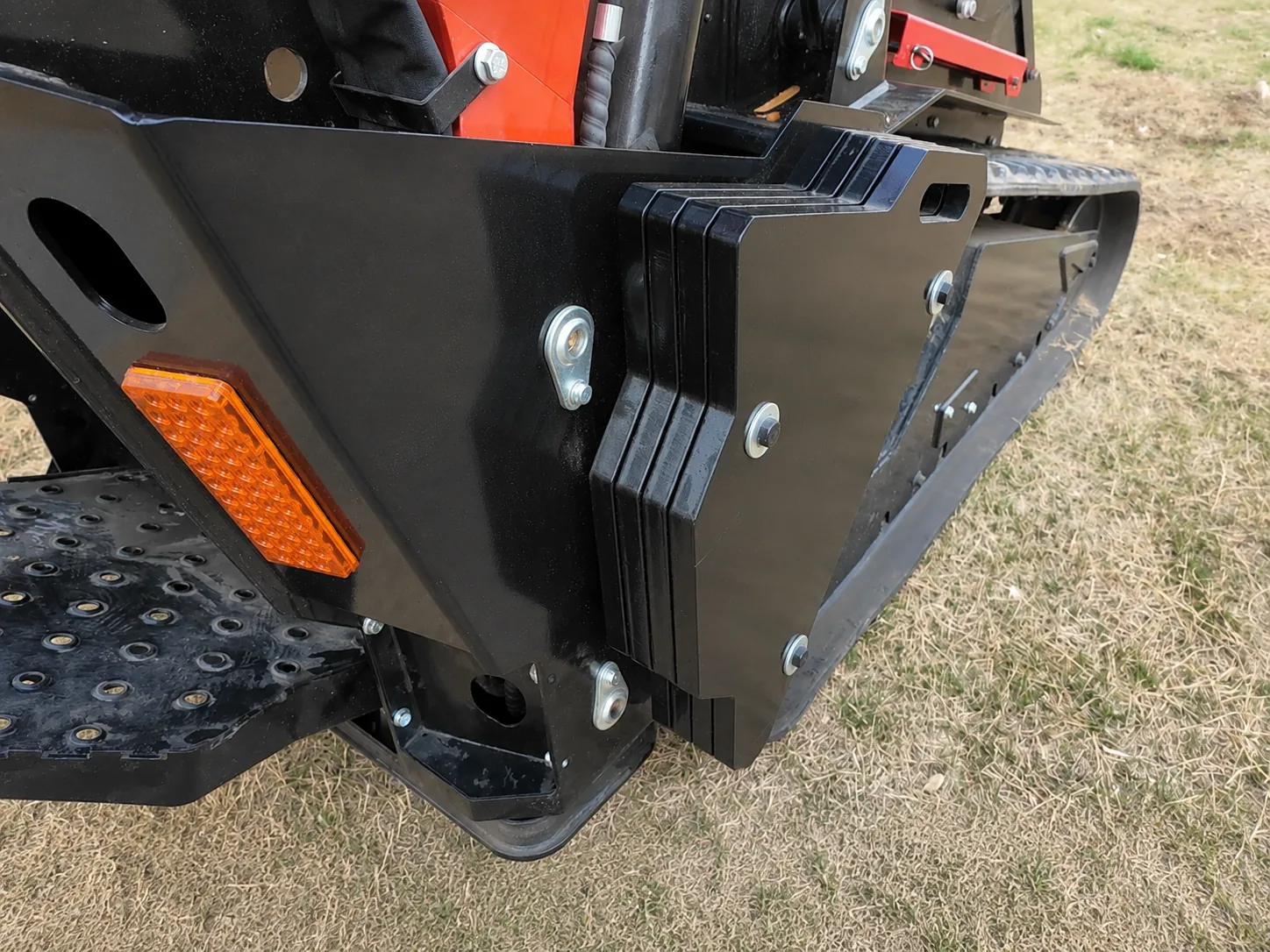

The counterweight layout supports machine stability during lifting, loading and attachment work. It helps the compact tracked loader maintain balance through changing work cycles.

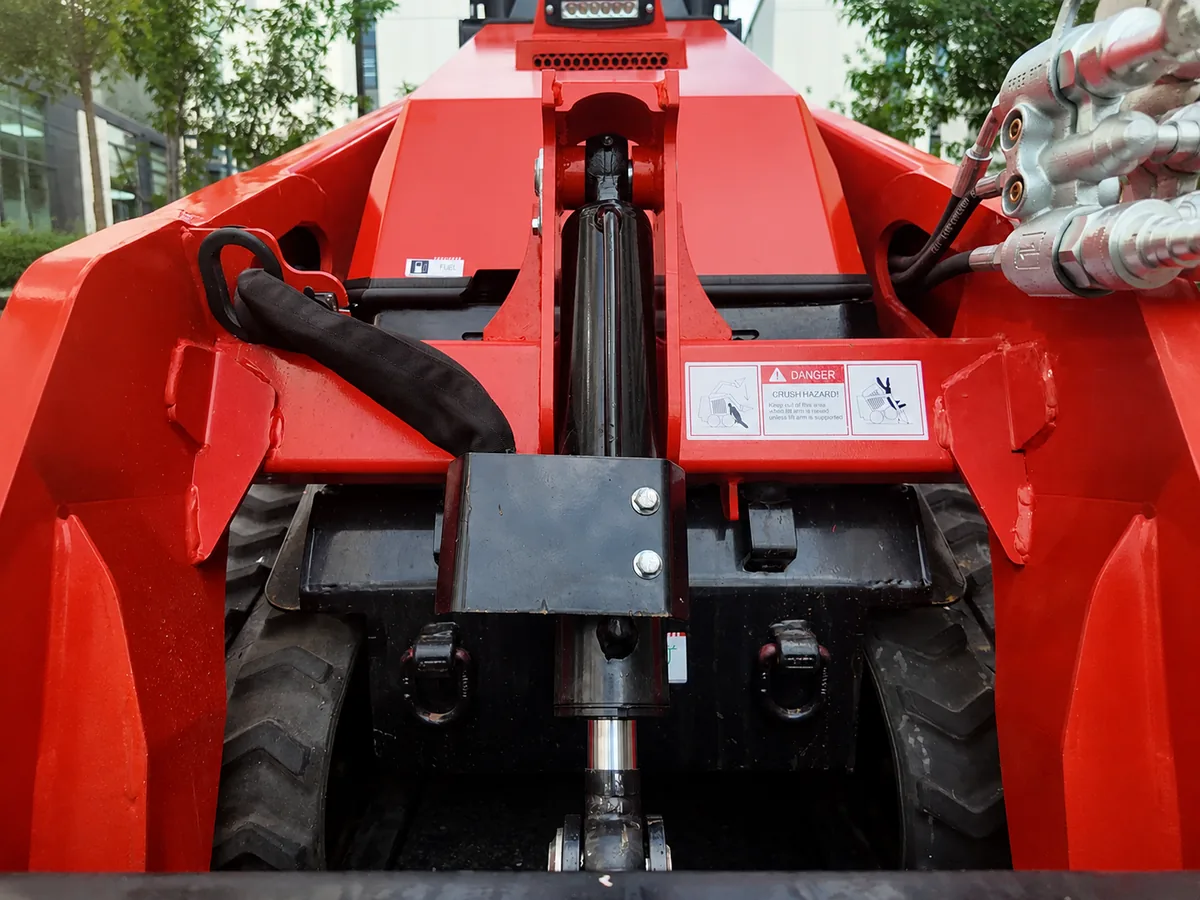

Protective hose sleeves reduce exposure to abrasion, impact and jobsite debris. This detail supports hydraulic-system durability in construction, farm and landscaping environments.

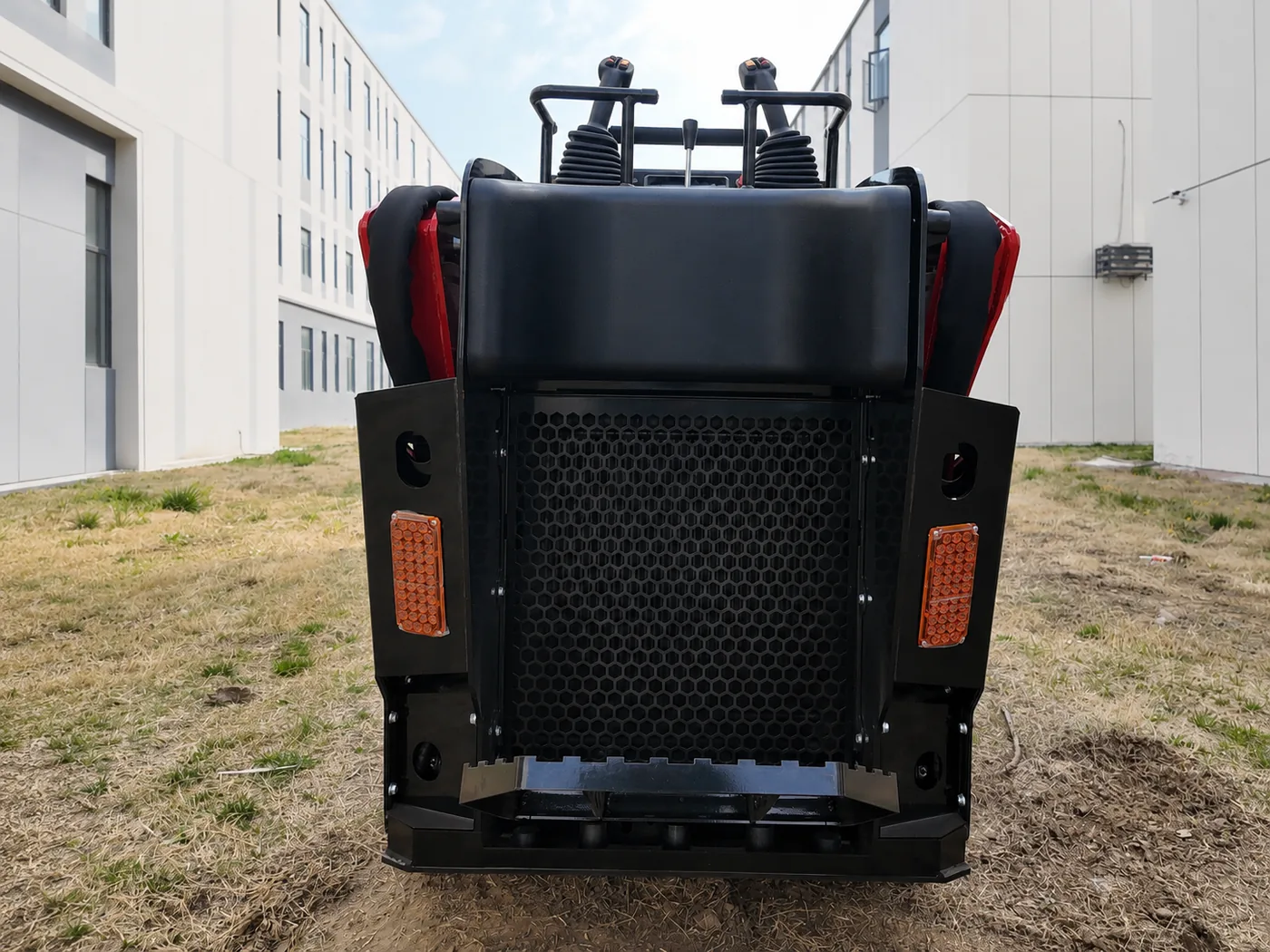

The reverse warning light alerts nearby personnel while the machine is moving backward. It is particularly useful on busy jobsites, loading areas and municipal projects.
Compare loading capacity, working range, machine dimensions and power options to determine whether the V1000 fits your site, transport limits and attachment requirements.
| Operating weight | 1417 kg |
|---|---|
| Bucket capacity | 0.19 m³ |
| Rated load | 500 kg |
| Maximum load | 650 kg |
| Breakout force | 4.5 kN |
| Travel speed | 0-5.5 km/h |
| Working pressure | 19.5 MPa |
| Working cycle | 9 s |
| Bucket width | 1235 mm |
|---|---|
| Maximum loading height | 1740 mm |
| Maximum dumping height | 1522 mm |
| Maximum operating height | 2794 mm |
| Height to bucket pin | 2140 mm |
| Ground clearance | 200 mm |
| Dumping distance | 498 mm |
| Climbing ability | 25 degree |
| Overall dimensions | 2691 x 1235 x 1548 mm |
|---|---|
| Length with bucket | 2691 mm |
| Length without bucket | 1981 mm |
| Track contact length | 1026 mm |
| Brochure track model | 230 x 72 x 45 |
| Standard track width | 230 mm |
| Fuel tank | 40 L |
| YANMAR engine | 3TNV80 |
|---|---|
| KUBOTA engine | D1105 |
| Perkins engine | 403D |
| Drive pump | Hansa closed-loop tandem pump |
| Work pump | Gear pump |
| Travel motors | Piston type |
| Track option | Rubber / steel |

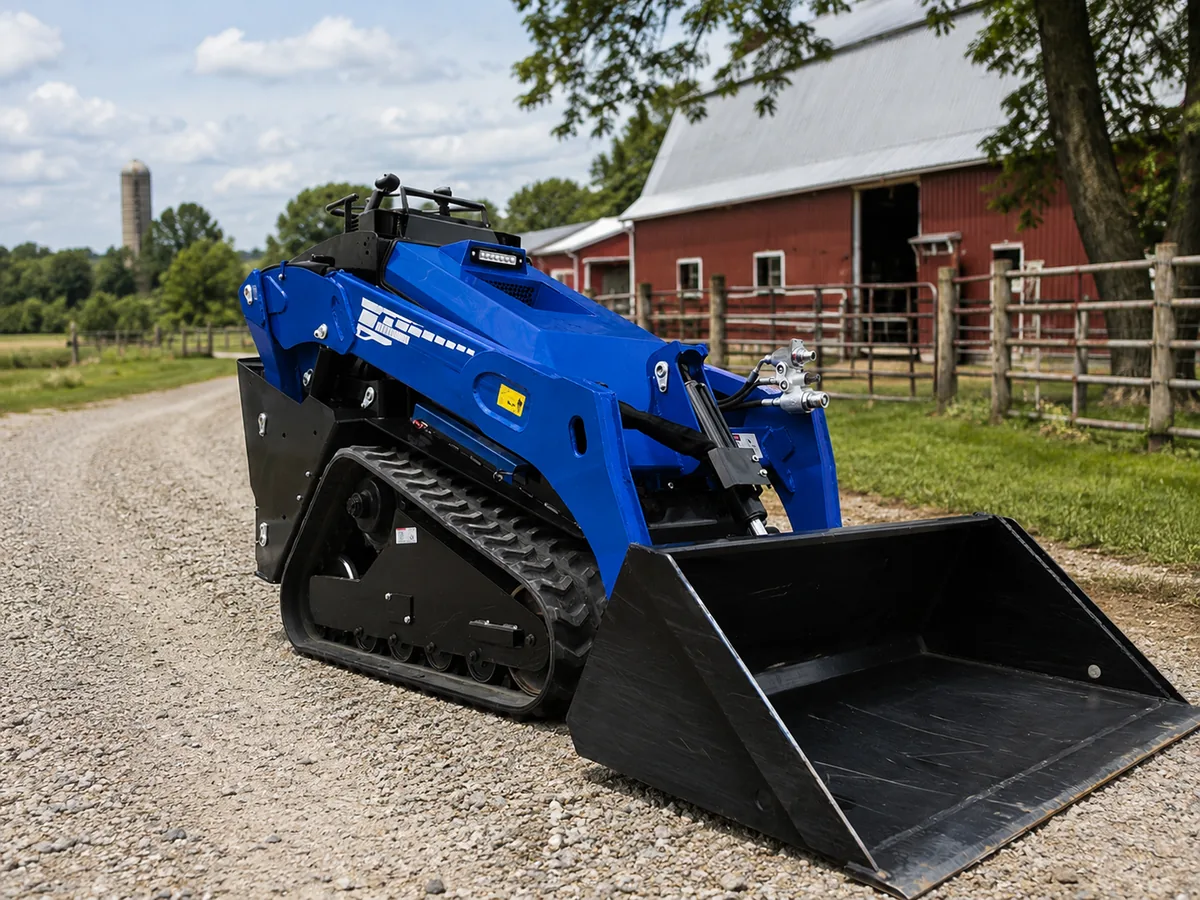

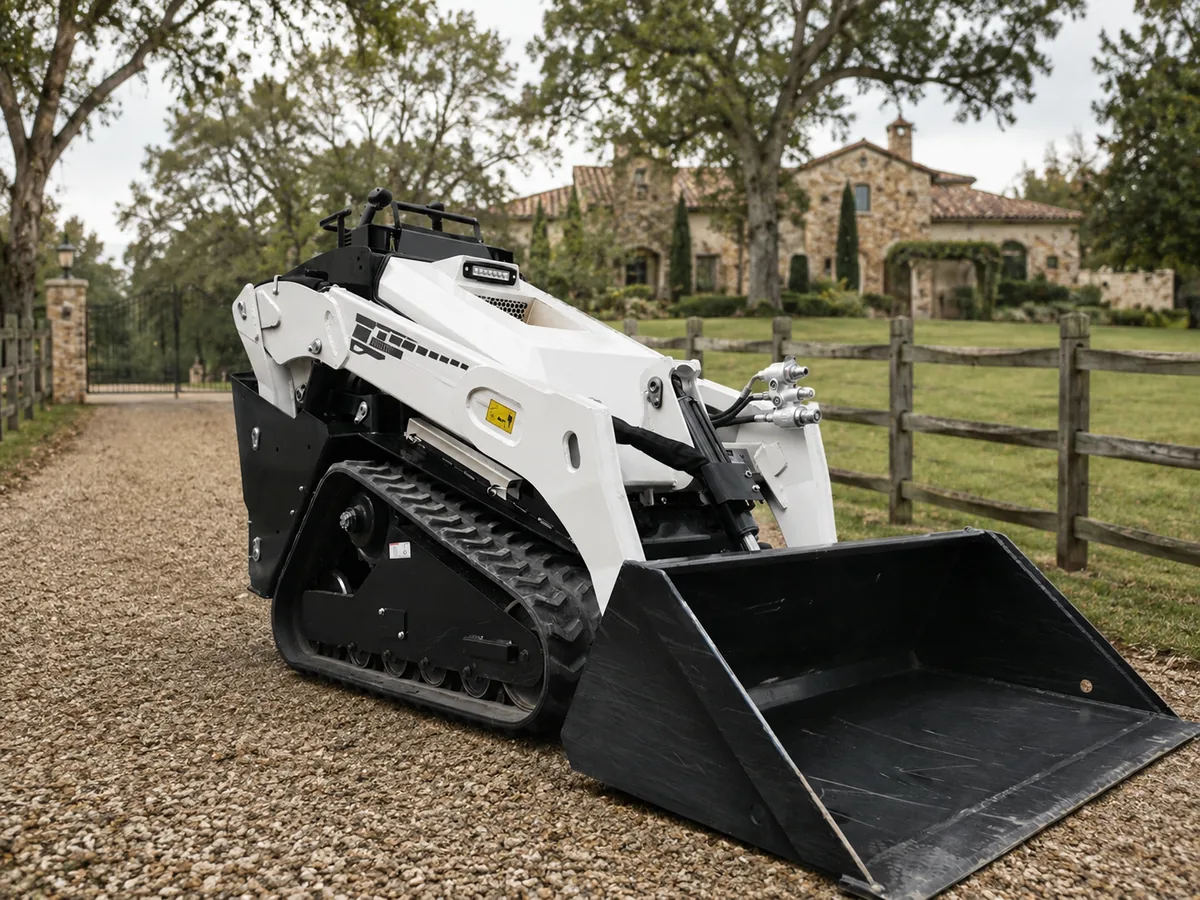

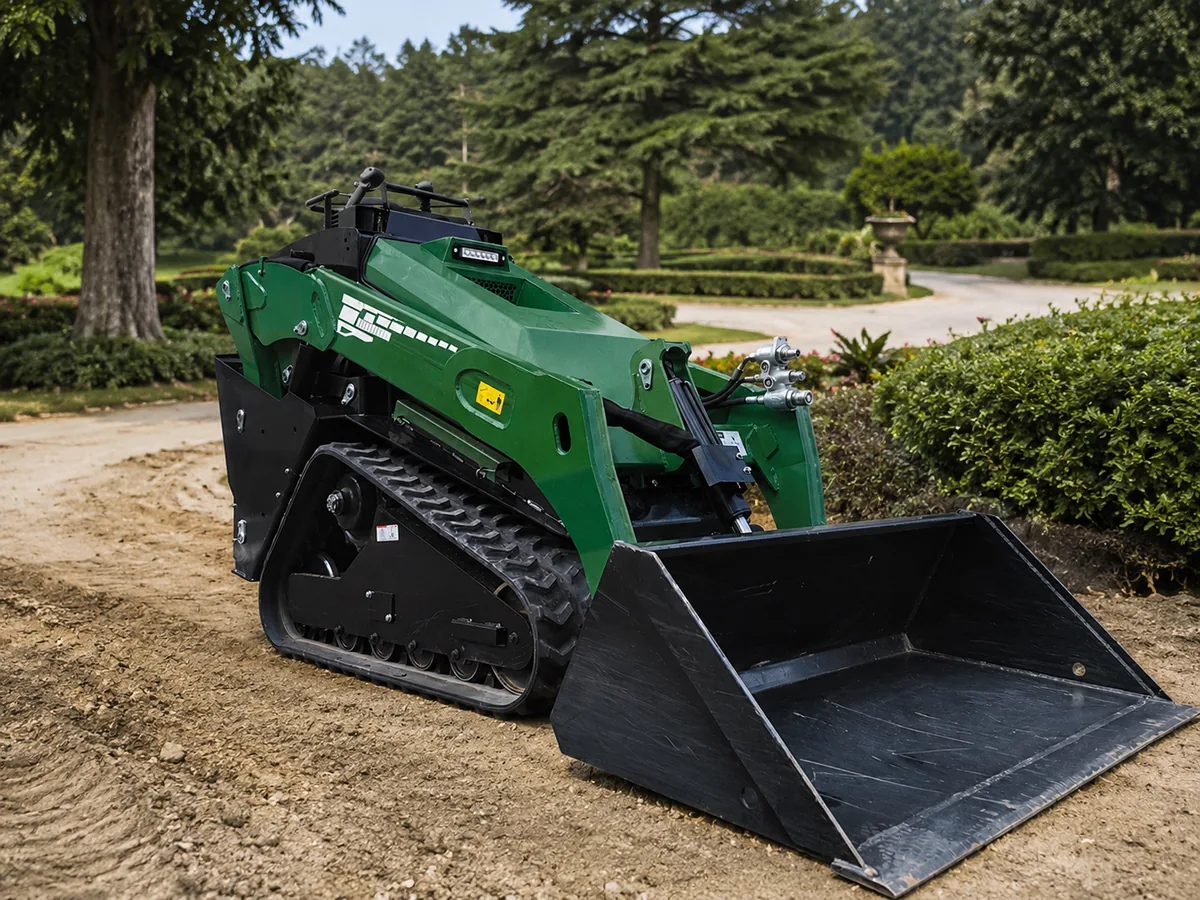

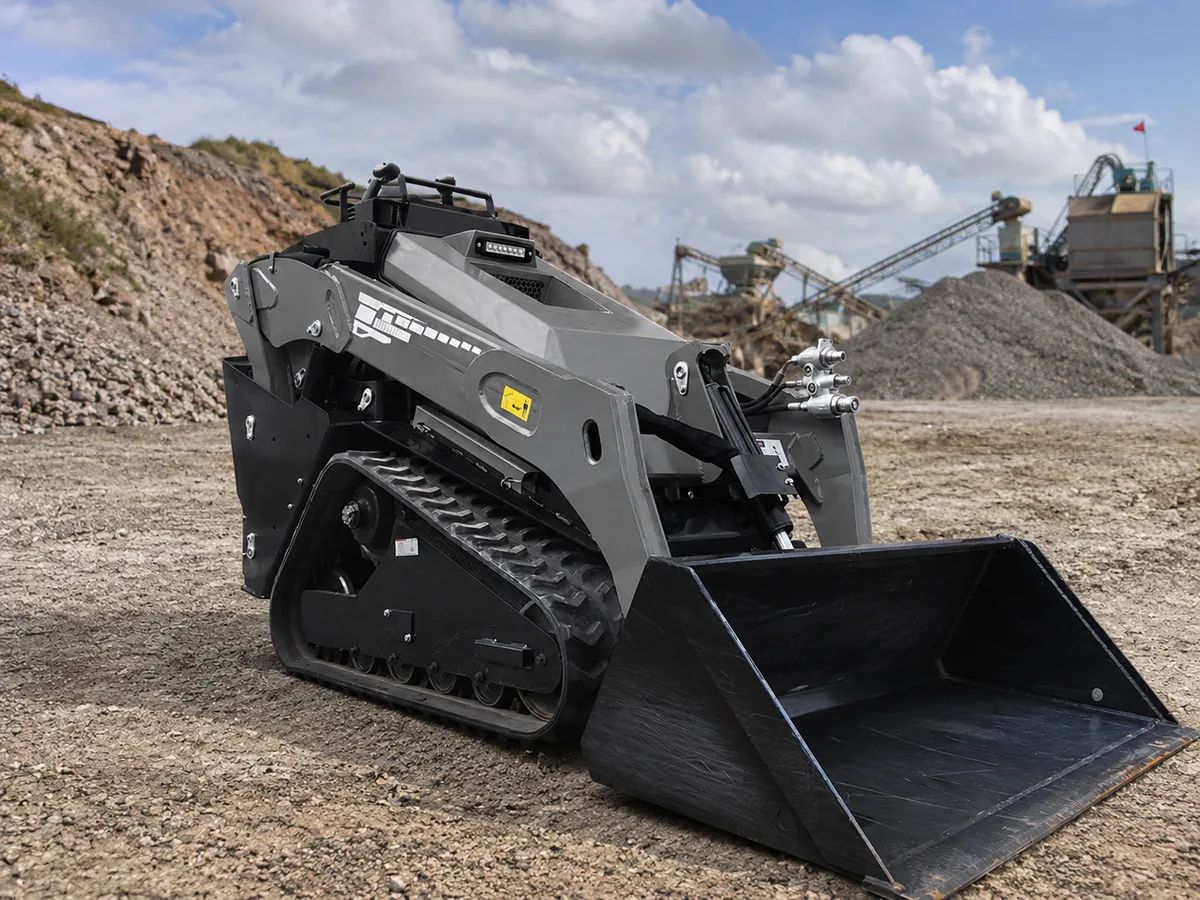

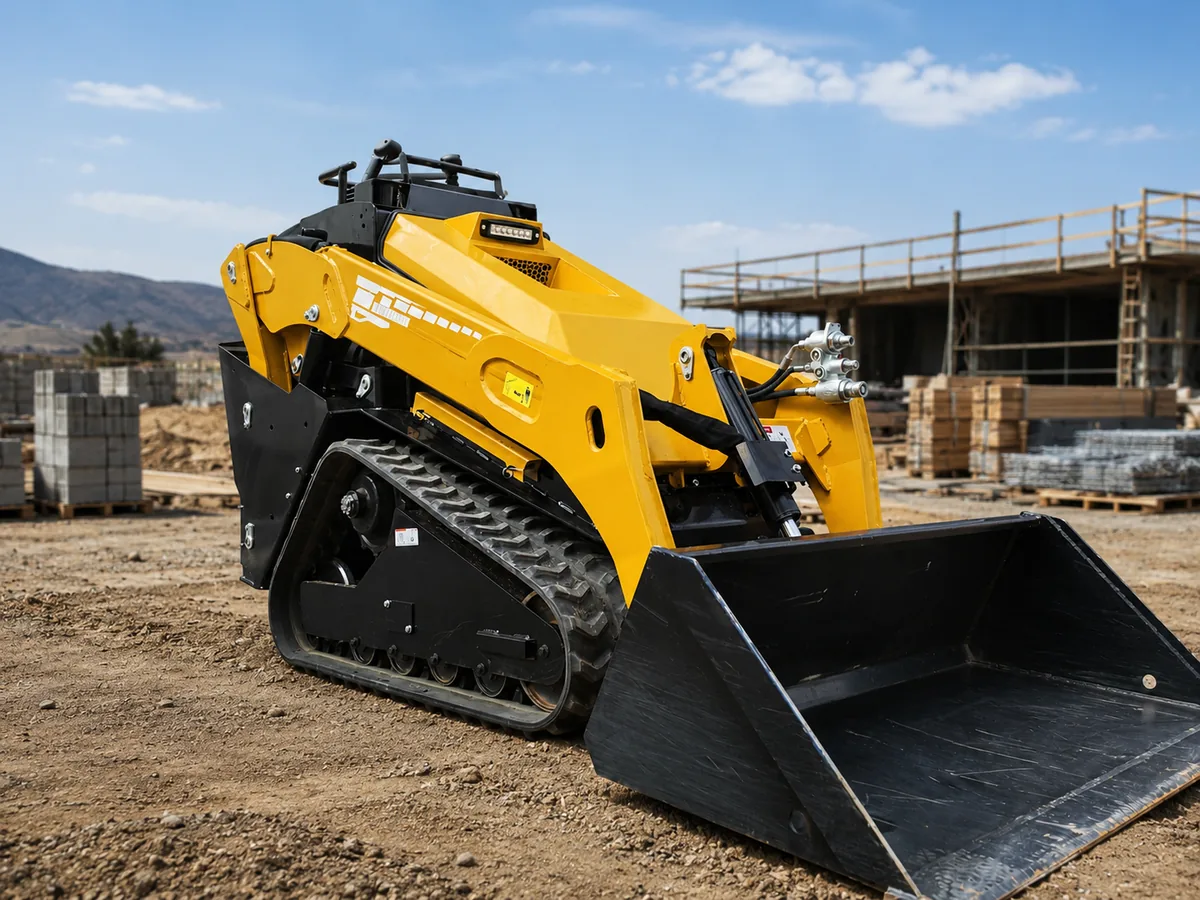

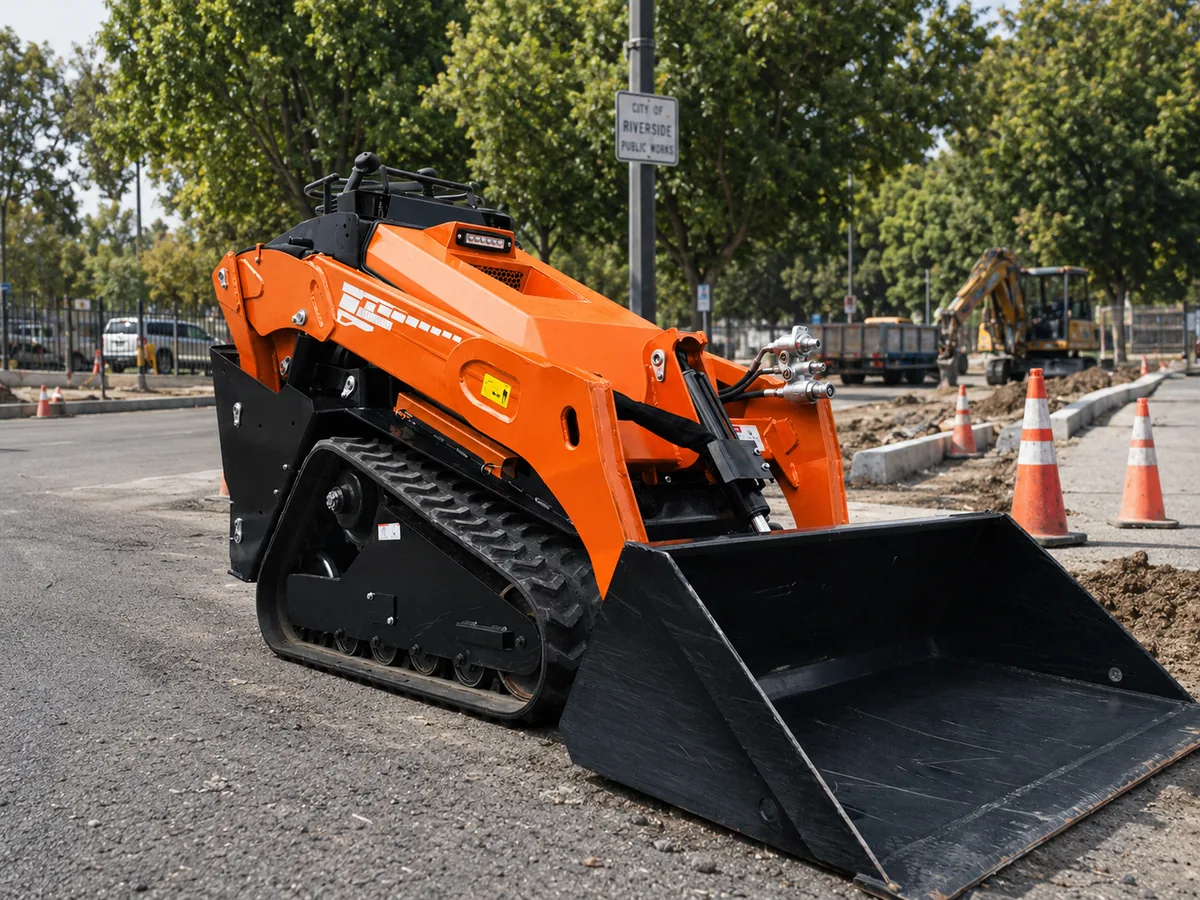

Choose the engine, undercarriage, attachment package and exterior presentation that fit the destination market and working conditions.
Choose the YANMAR 3TNV80 tracked skid steer loader for a recognized diesel power option in farm, landscaping and construction applications. Export documentation is matched to the selected engine and destination market.
The KUBOTA D1105 compact track loader configuration is available for buyers who prefer established KUBOTA diesel power. It can be matched with rubber or steel tracks and the required attachment package.
The Perkins 403D mini tracked loader configuration gives overseas buyers a third recognized diesel engine choice. Rated power and destination-market documents are specified with the final machine configuration.

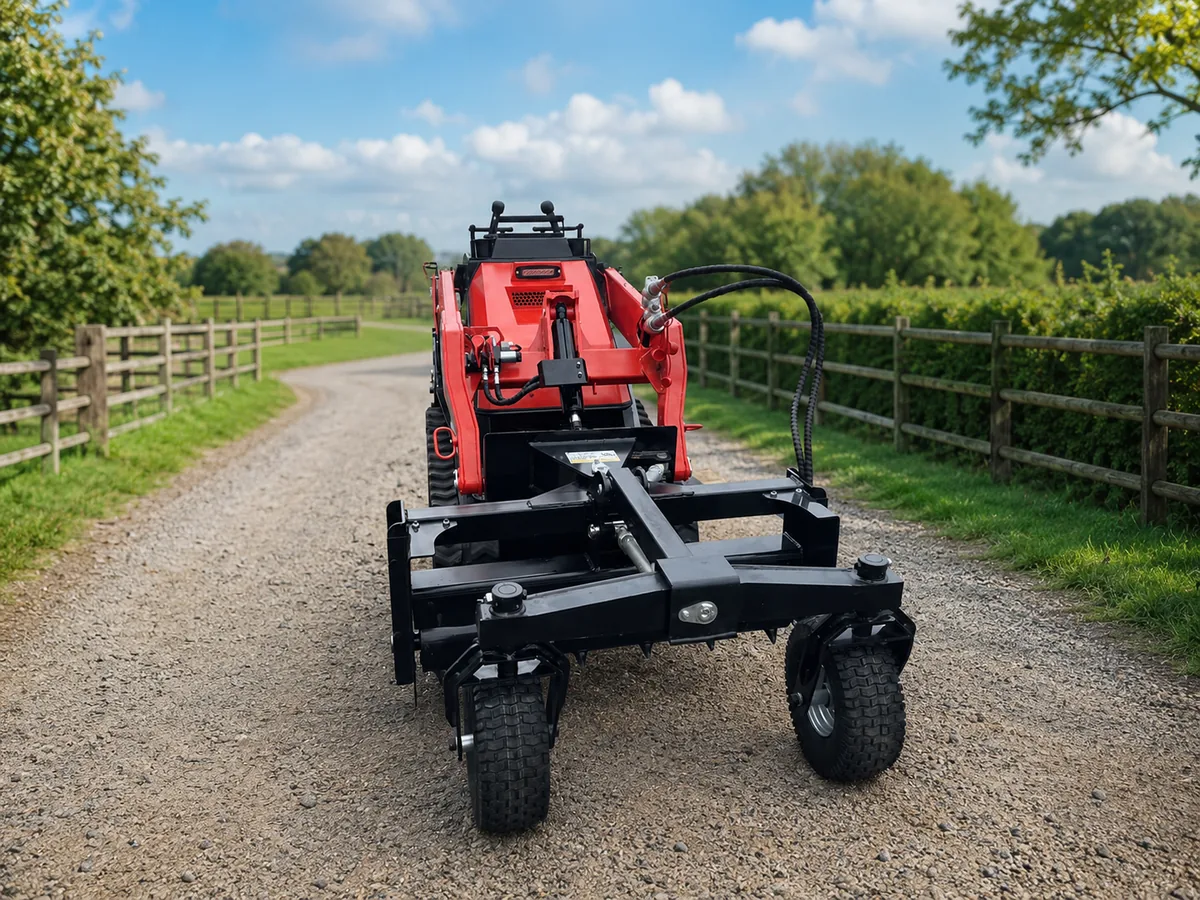

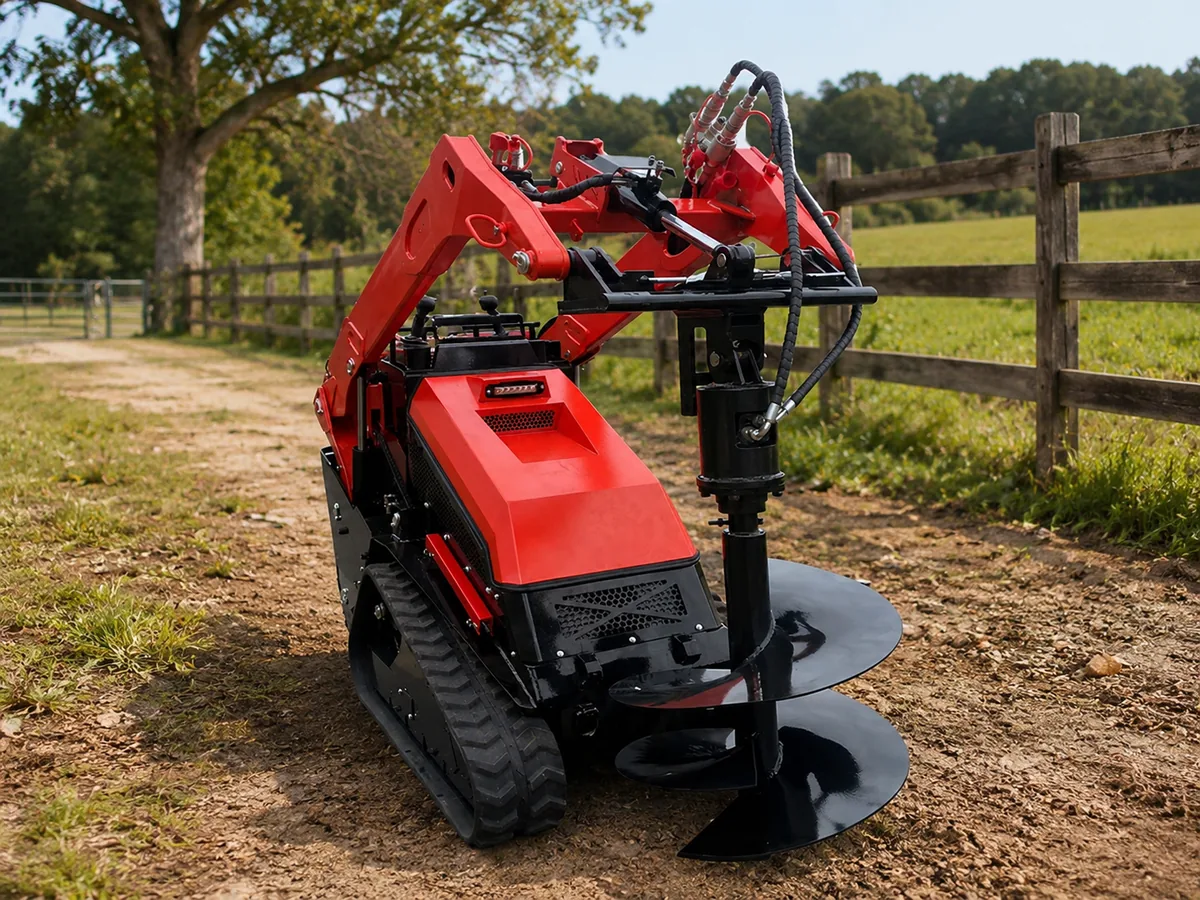

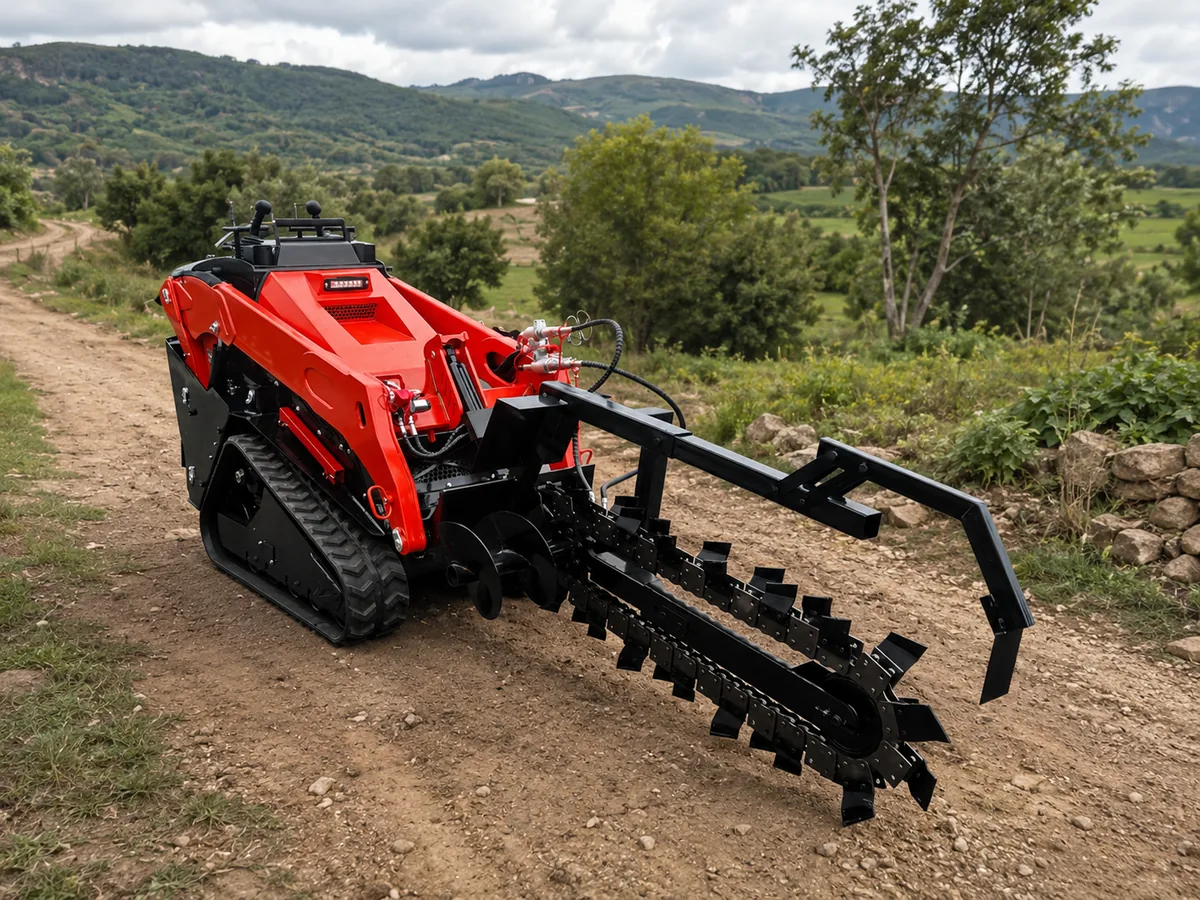

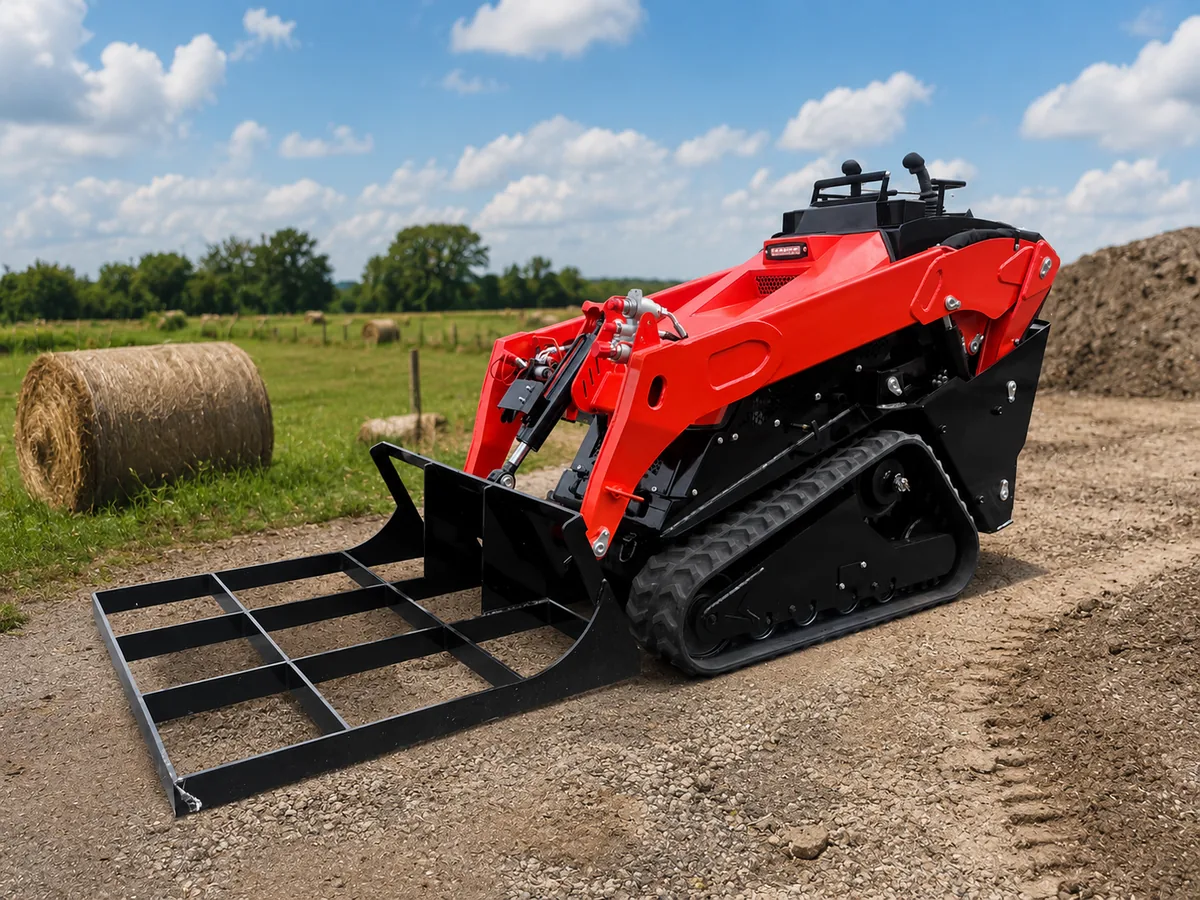

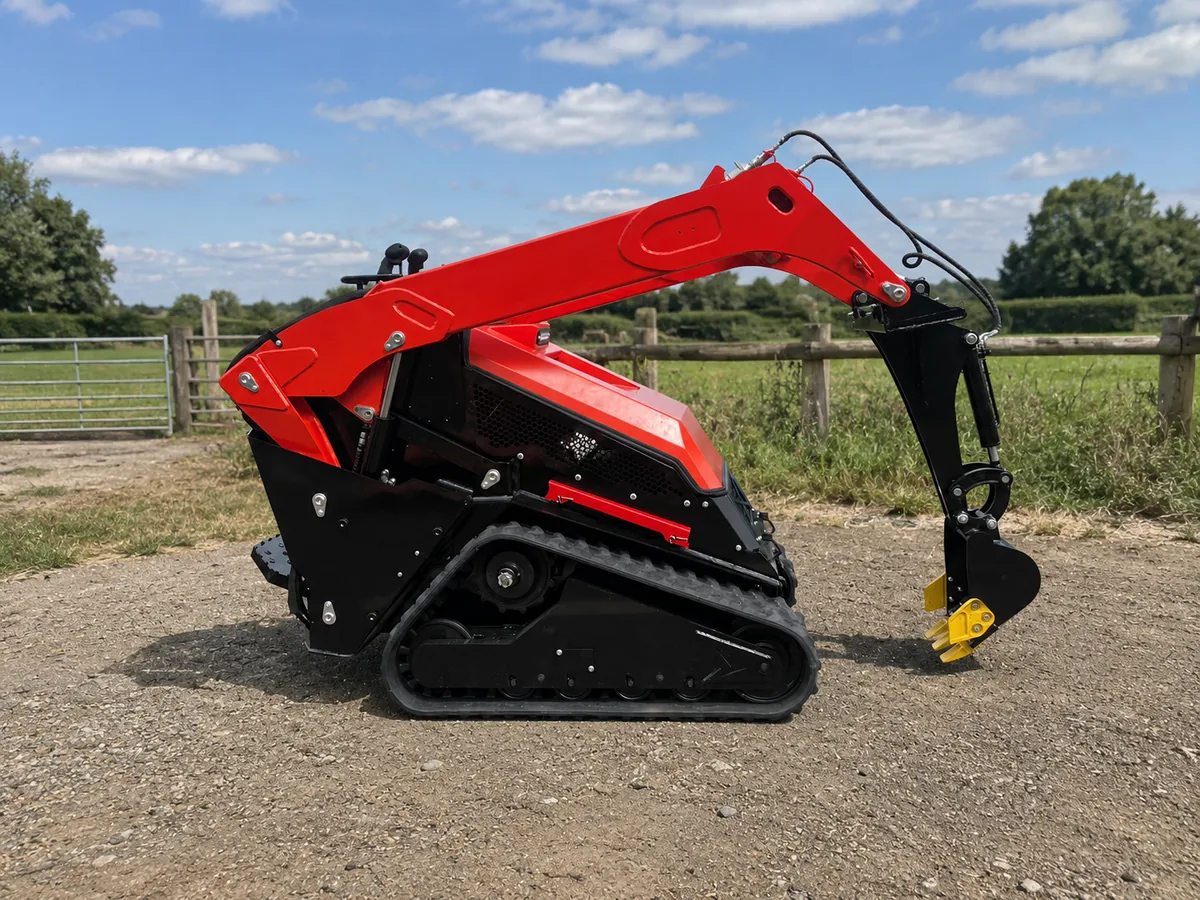

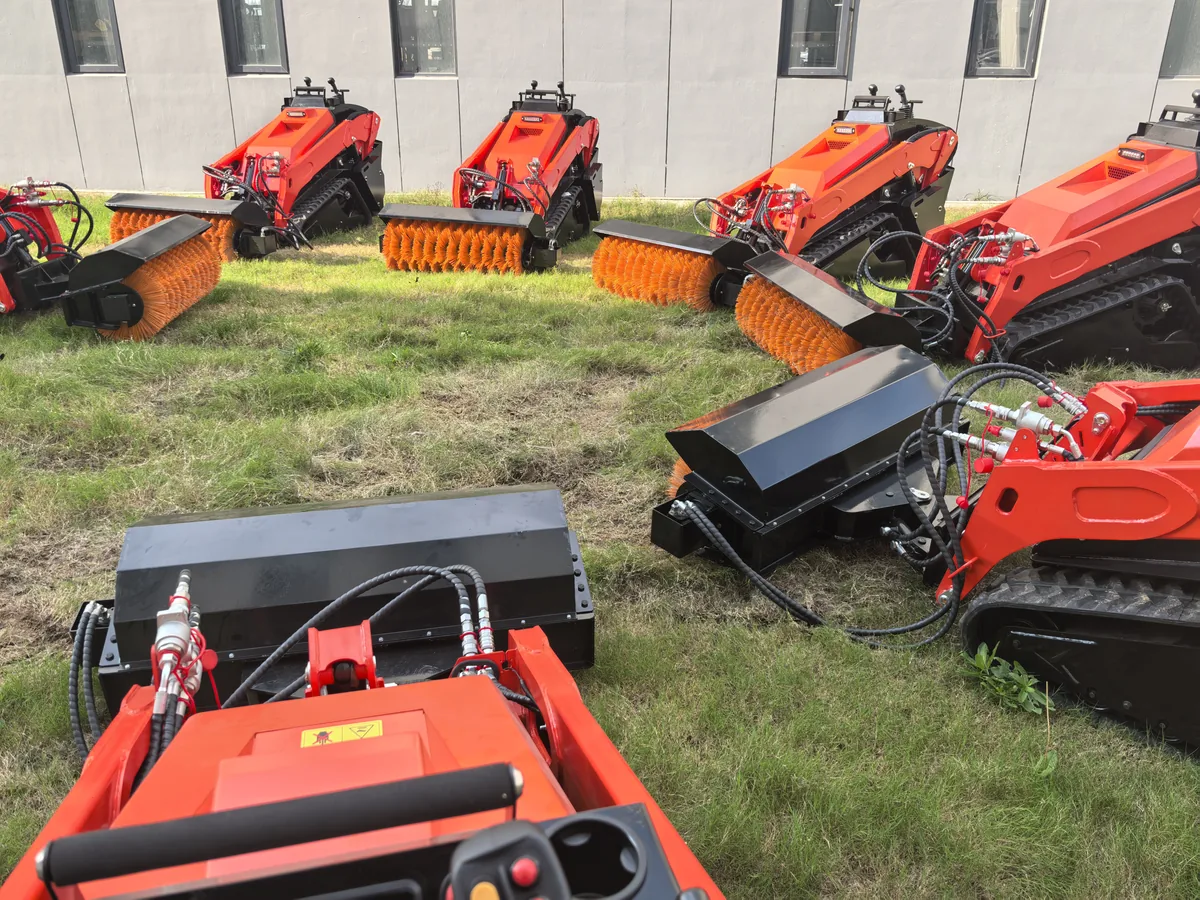

Match buckets, augers, breakers, sweepers, trenchers, mowers, grapples and blades to the hydraulic requirements.

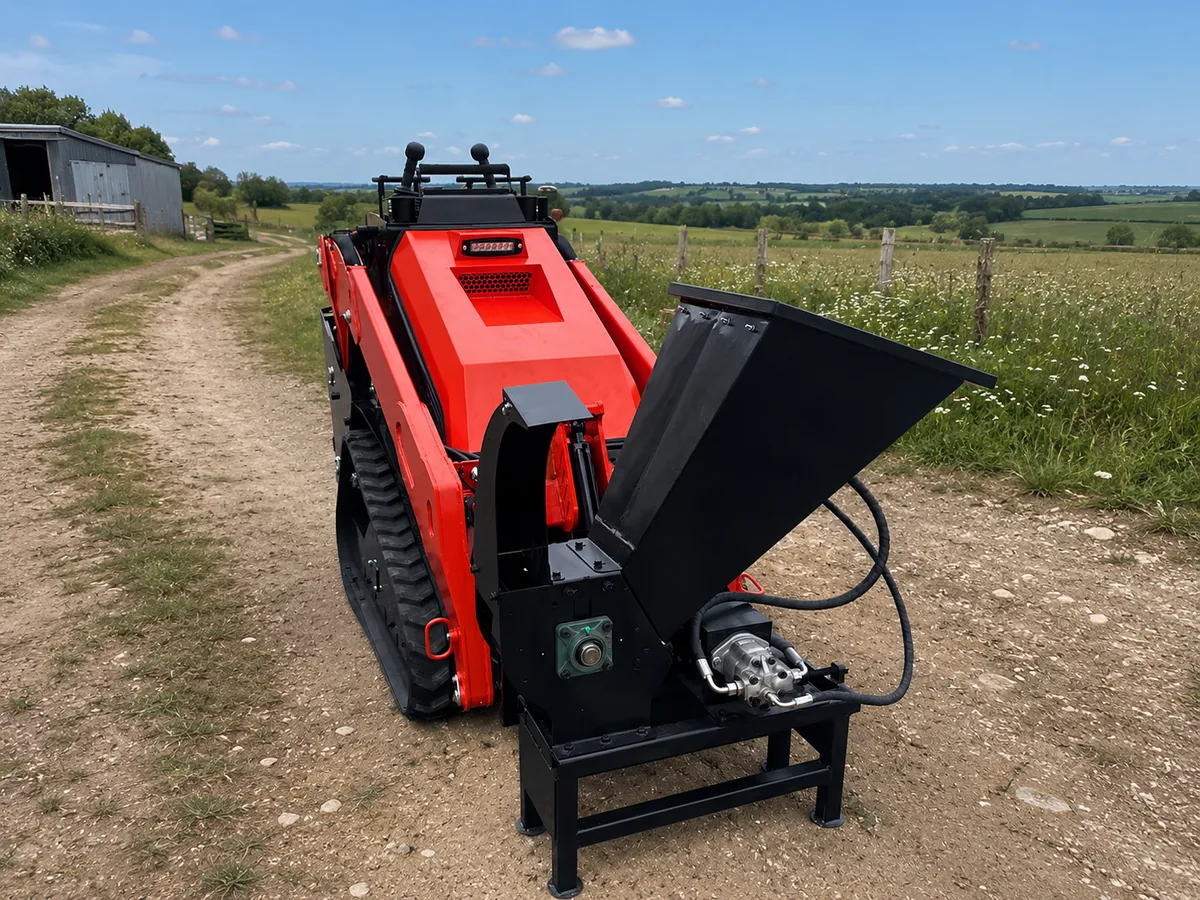

Turn the V1000 compact track loader into a multi-purpose carrier by selecting attachments for drilling, trenching, vegetation control, cleanup, material handling and compaction.
Final attachment compatibility depends on the mounting interface, hydraulic flow, pressure and attachment operating weight.
Six practical answers for initial model selection and quotation preparation.
The V1000 is intended for farms, landscaping, construction, road maintenance, material handling and attachment-based work on changing ground.
Confirmed options are YANMAR 3TNV80, KUBOTA D1105 and Perkins 403D. Final power and certification documents depend on the selected configuration.
Yes. The confirmed configuration combines a Hansa closed-loop tandem pump, a gear pump and piston travel motors.
Yes. The standard configuration uses 230 mm rubber tracks, while steel tracks are available for abrasive or higher-wear applications.
Buckets, forks, augers, breakers, sweepers, trenchers, mowers, grapples and blades can be discussed after confirming interface and hydraulic requirements.
Send the engine, track type, attachments, quantity and destination country for a matched product and shipping quotation.

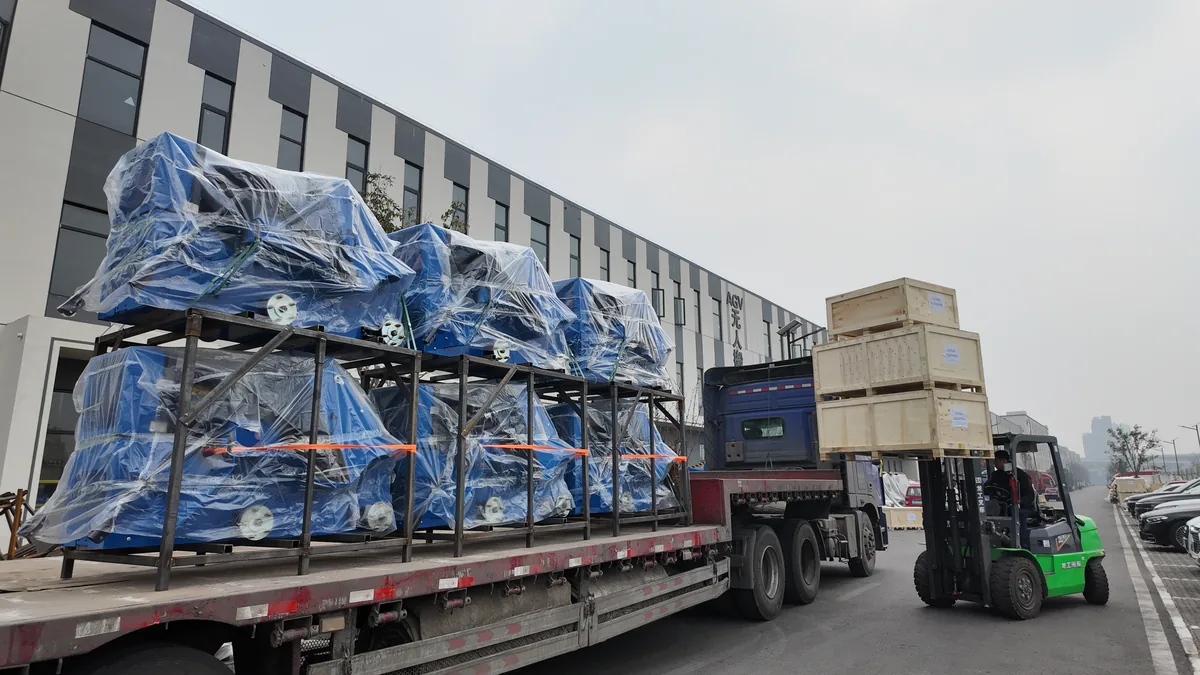

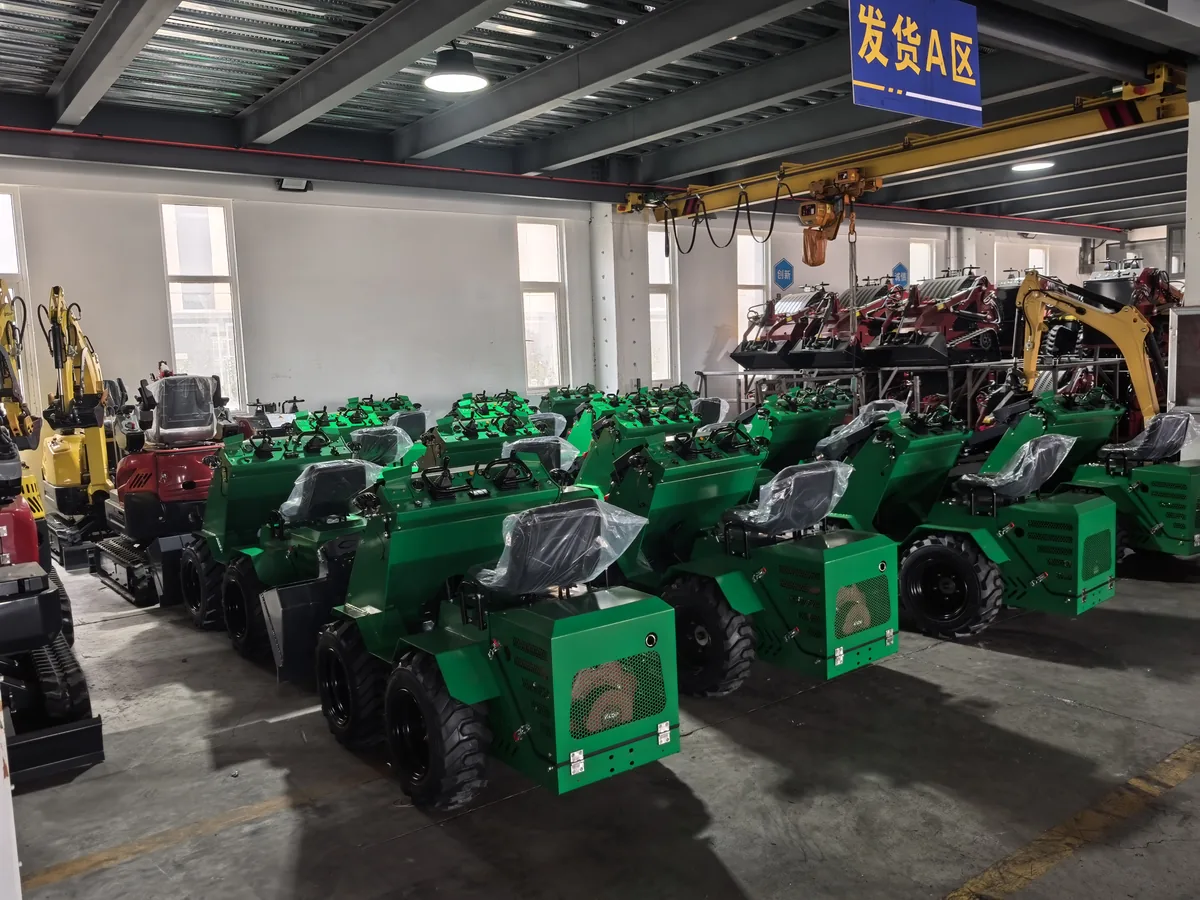

V1000 tracked loader buyers can request packing proof, container loading photos and organized overseas shipment updates before export delivery.

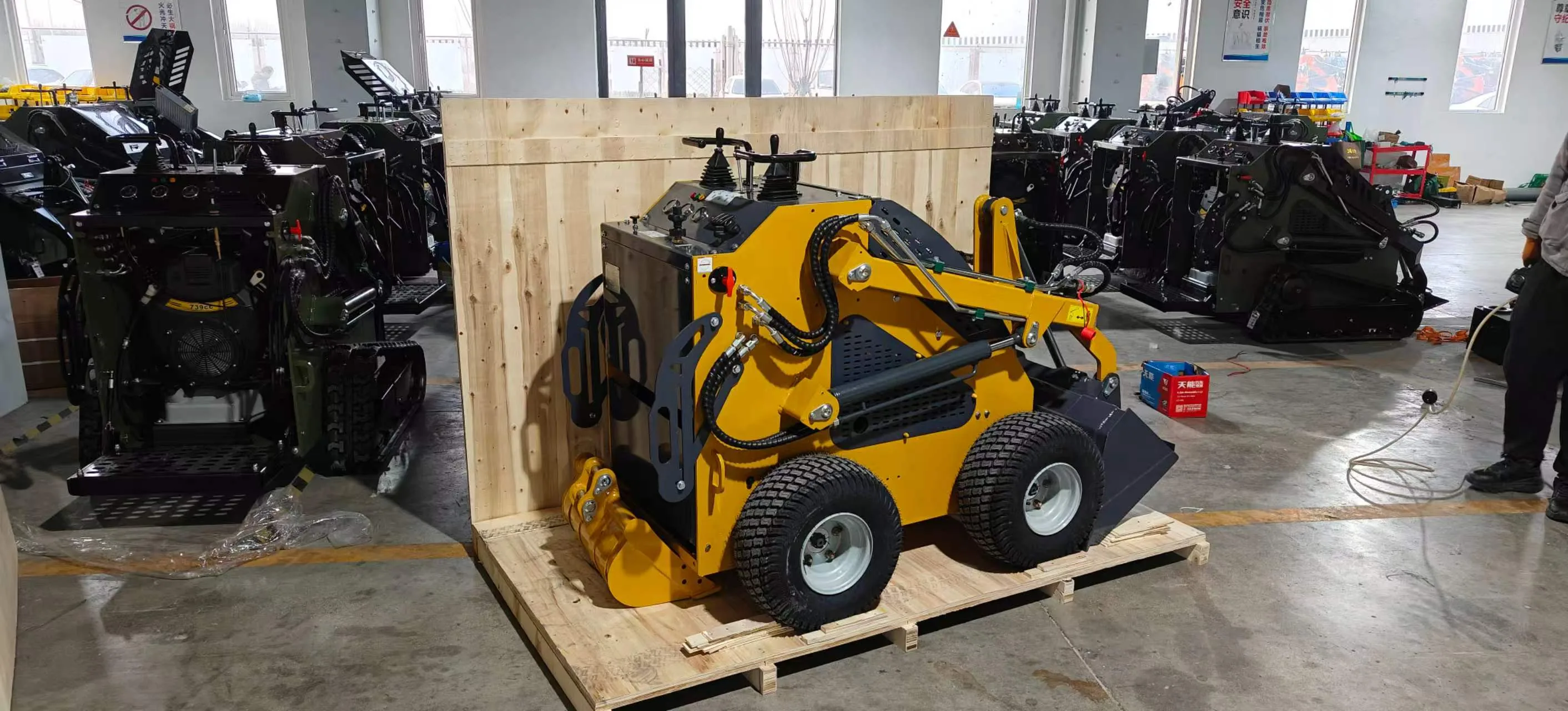

Each skid steer loader is securely packed to help protect key components during sea transportation.
Professional loading helps improve container space use and supports safer overseas shipment.
Packed machines are prepared for shipment with organized loading arrangements for overseas buyers.
