Move soil, aggregate and job-site materials with a compact tracked loader designed for restricted access.
Compact Crawler Loader
C1200 Compact Tracked Multi-Function Loader
Built for tight spaces, tough terrain and multi-attachment work in construction, landscaping and agricultural applications.
Compact crawler chassis for narrow job sites
Multi-attachment system for different tasks
18.8 MPa working hydraulic pressure
Kubota D1105 / 17.1 kW
Factory Direct Supply
OEM / Custom Color
Pre-Delivery Inspection
Spare Parts Support
Export Ready
Fast Response Service
440 kgRated load
0-6 km/hTravel speed
25 degreeClimbing ability
500 kgMaximum load
Application Scenarios

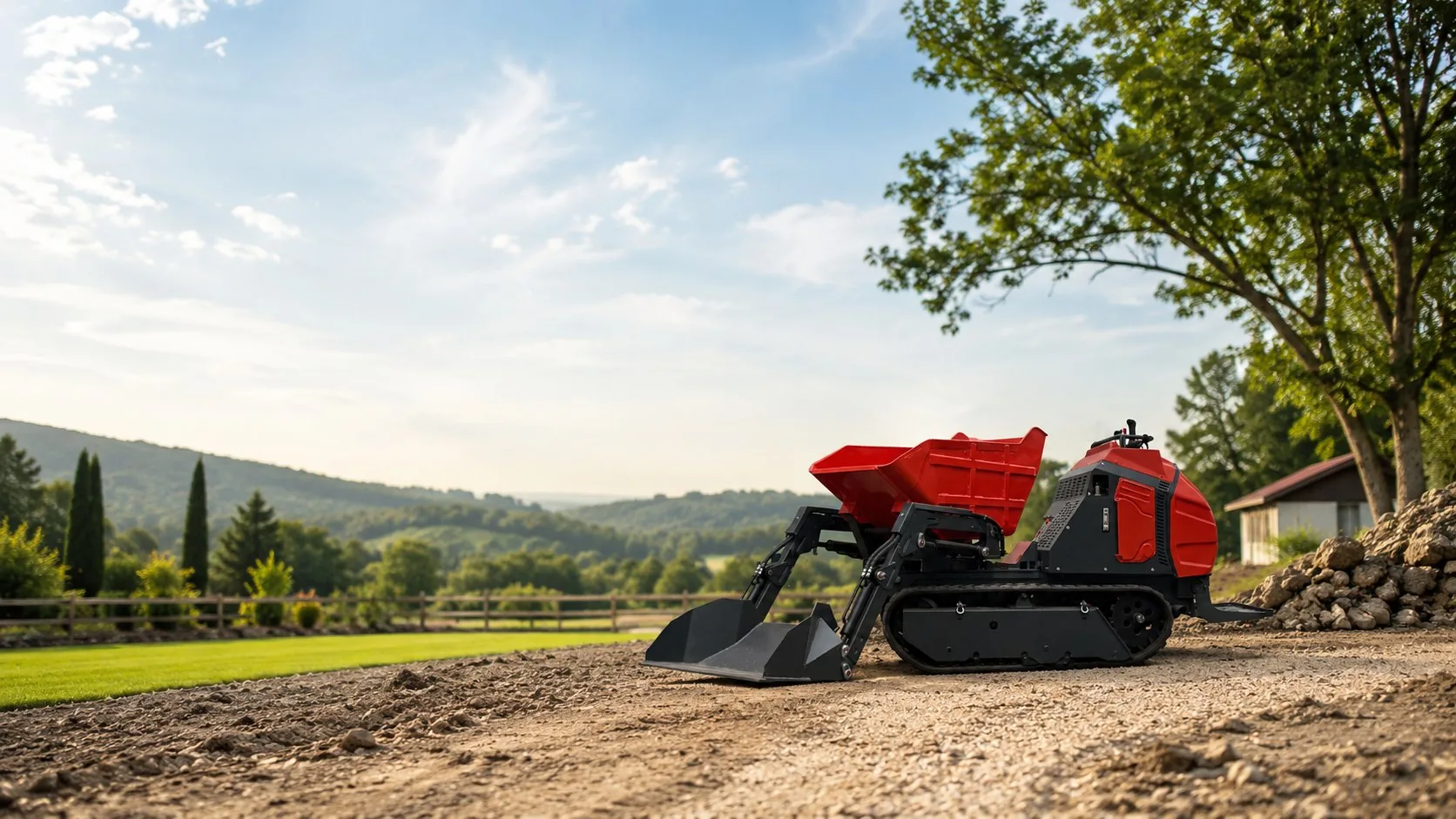

One Compact Tracked Loader for Different Work Sites
The C1200 combines a 1045 mm machine width, crawler mobility and configurable work equipment for sites where access, traction and task flexibility matter.
Landscaping
Support grading, loading, trench preparation and material placement around properties and landscape projects.
Agriculture
Configure the agricultural crawler loader for farm material handling, feed work and property maintenance.
Utility Work
Match the compact tracked multifunction machine with specialized equipment for maintenance and support tasks.
Configurations & Attachments
Build the C1200 Around the Job
Select the machine configuration and attachment interface according to material, working ground, hydraulic demand and destination-market requirements.
Machine Setup
Choose the Working Configuration
Match the loader structure to the intended task, material and site access. Final hydraulic connections and attachment interfaces are confirmed with the quotation.
Work Tools
Configure the C1200 for More Tasks
Popular tools cover loading, trenching, drilling, material handling and property maintenance. Hydraulic flow and interface compatibility must be checked before ordering powered attachments.
Key Features
Designed for Compact, Multi-Task Operation
Real machine details show the C1200 undercarriage, hydraulic connections, access points and operating station.
01 / Compact Chassis

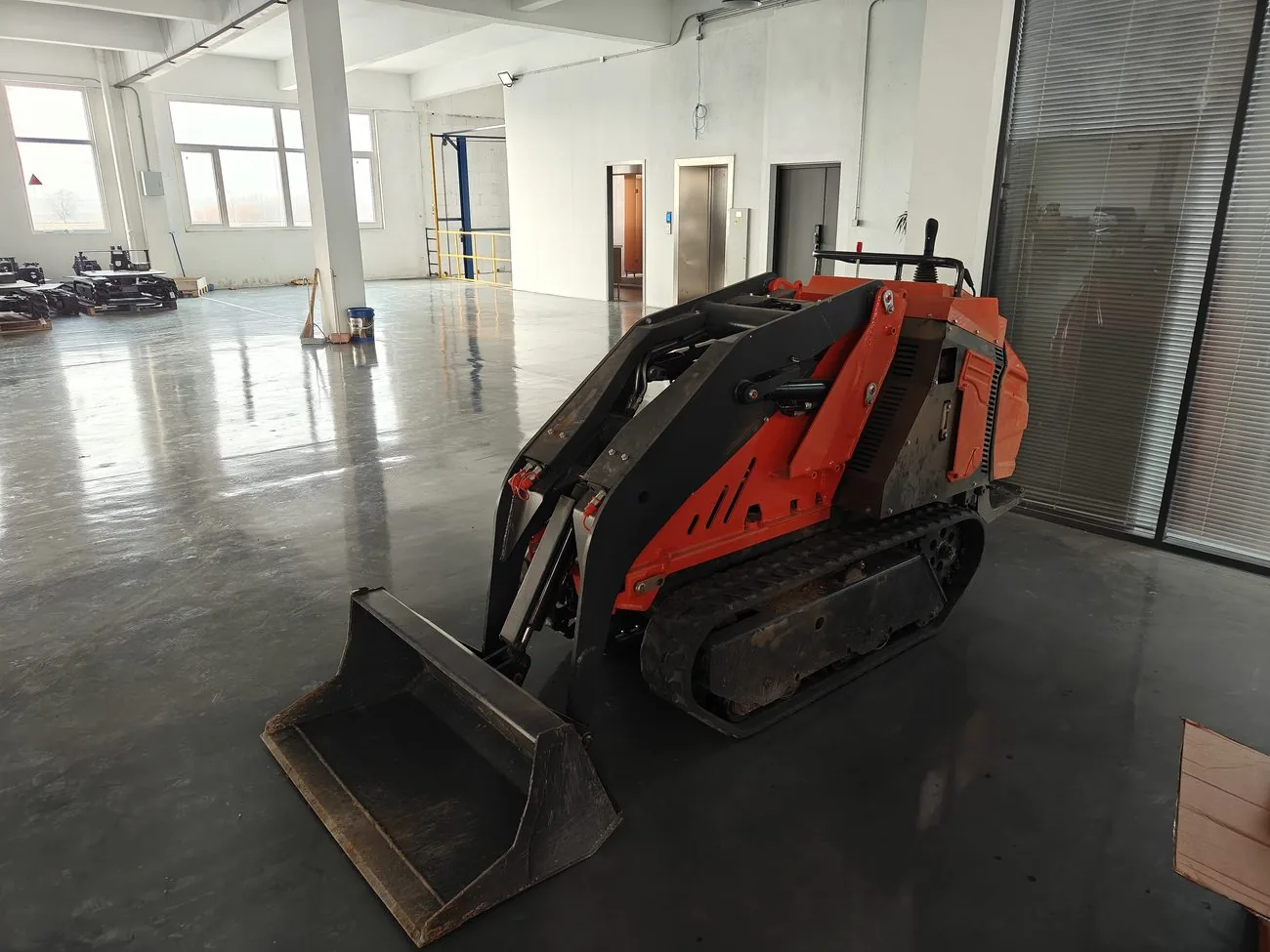

Compact Crawler Chassis
With an overall width of 1045 mm, the C1200 is positioned for narrow job sites, property access and confined material-handling areas.
02 / Hydraulics

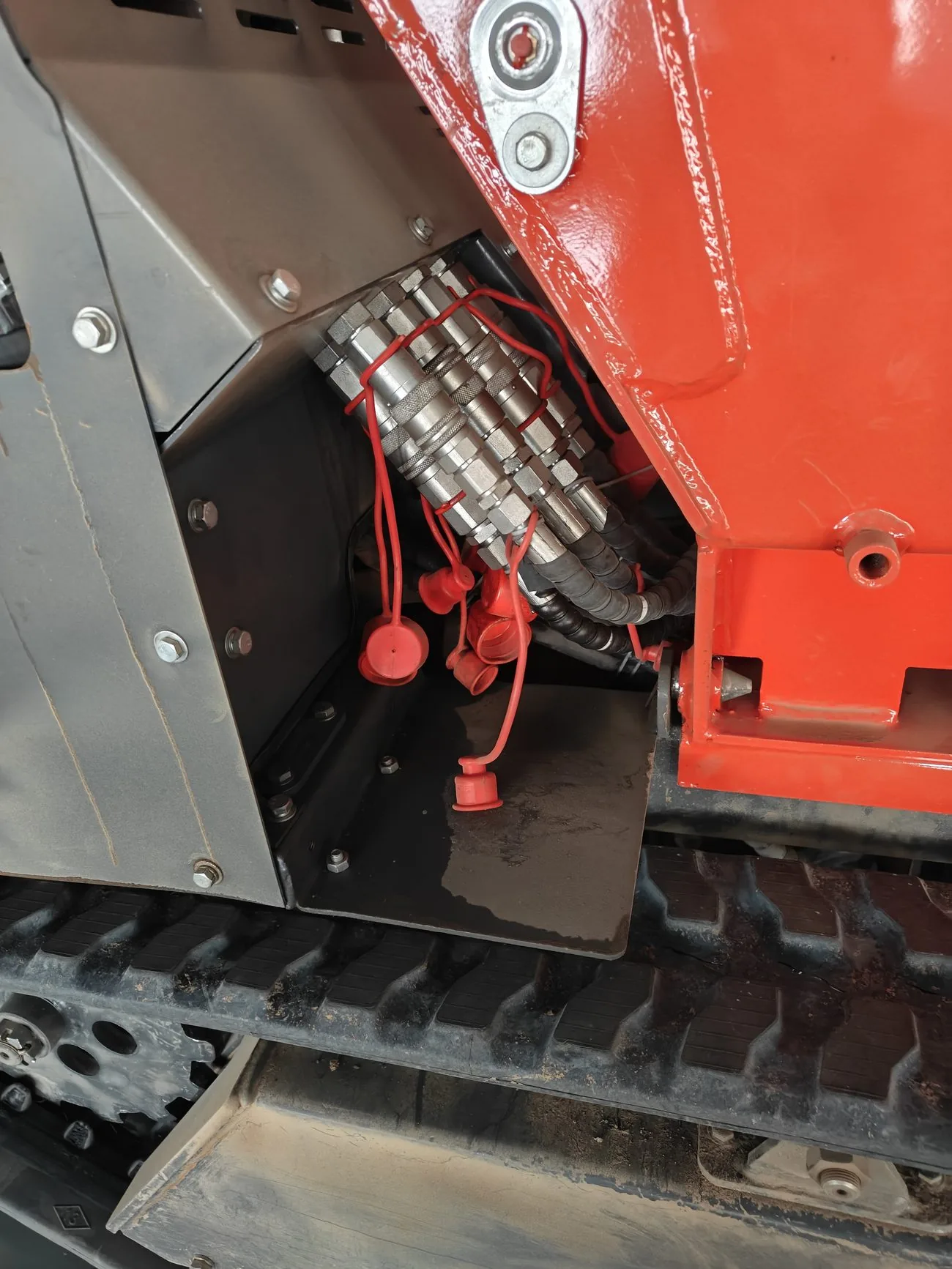

Stable Hydraulic System
A listed 18.8 MPa working pressure supports loader functions and configurable auxiliary hydraulic connections. Attachment flow must be confirmed for each tool.
03 / Attachment Change
Quick Attach Configuration
An optional quick attach configuration helps operators change compatible work tools more efficiently. Confirm the final interface before ordering attachments.
04 / Undercarriage

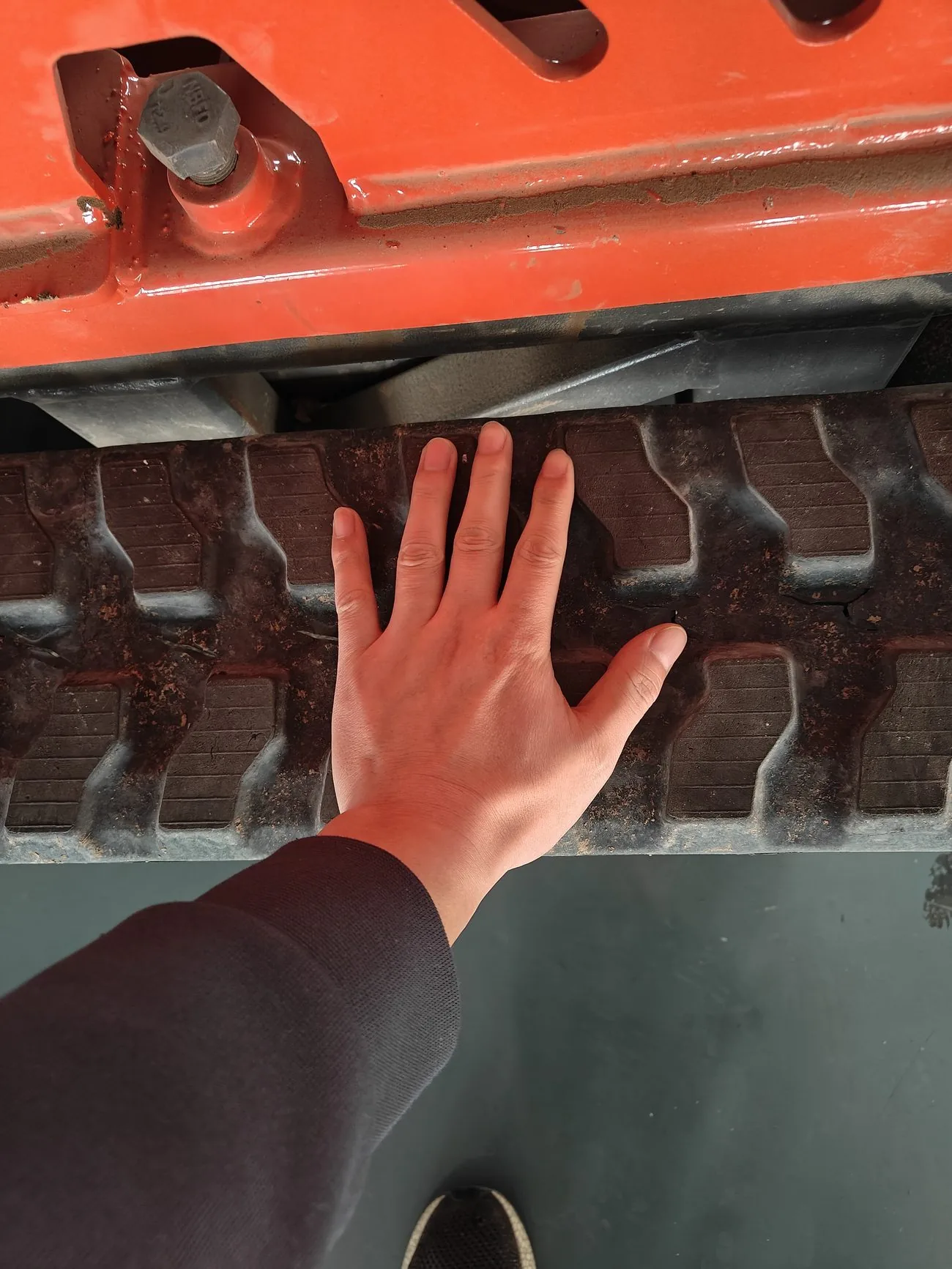

Heavy-Duty Rubber Tracks
The 200 mm rubber track specification provides a stable footprint for mixed ground conditions while keeping the compact crawler loader maneuverable.
05 / Service Access

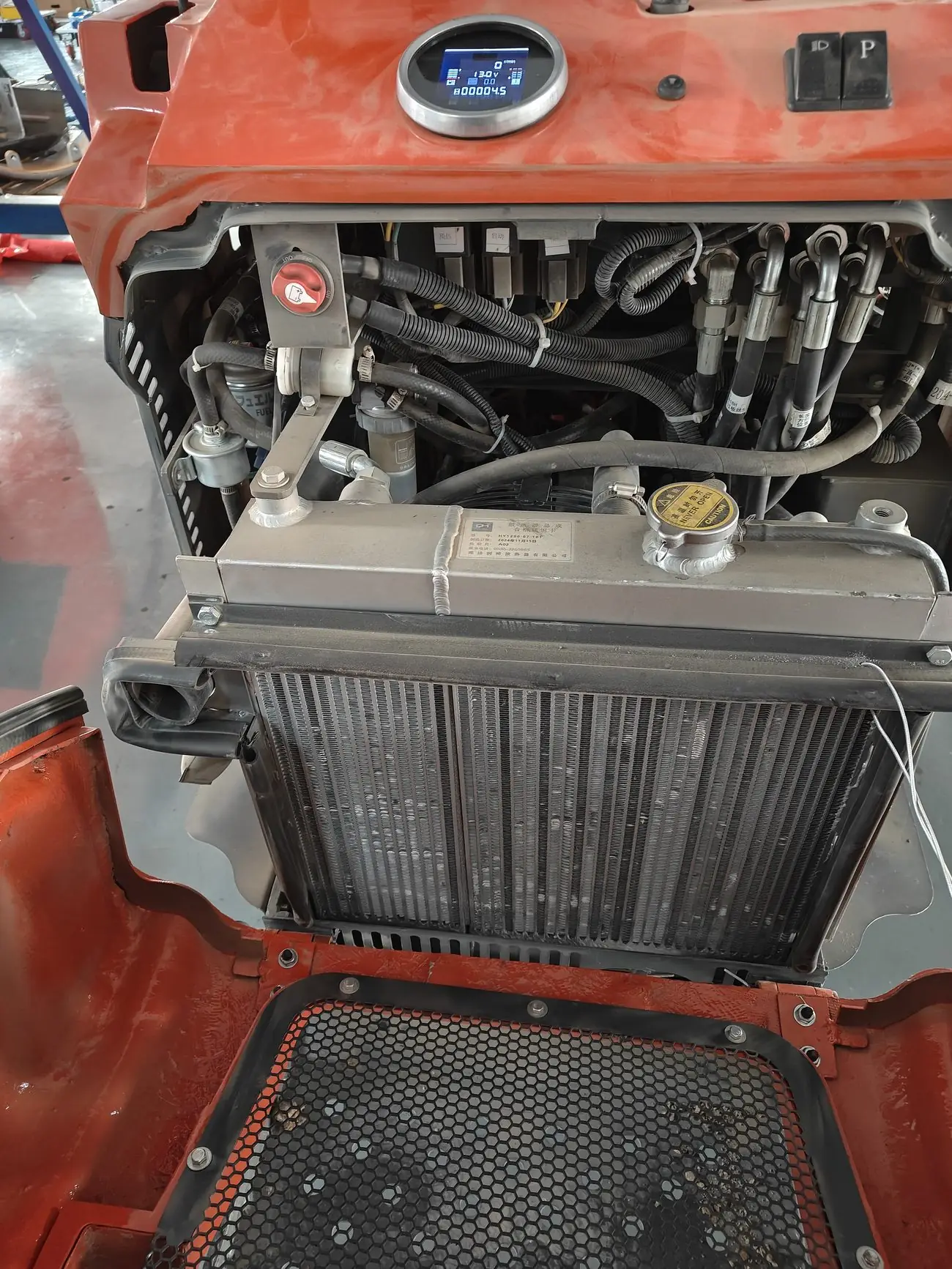

Easy Maintenance Access
Opening service panels provide direct access to the cooling package, filters, hoses and routine inspection points.
06 / Operator Station

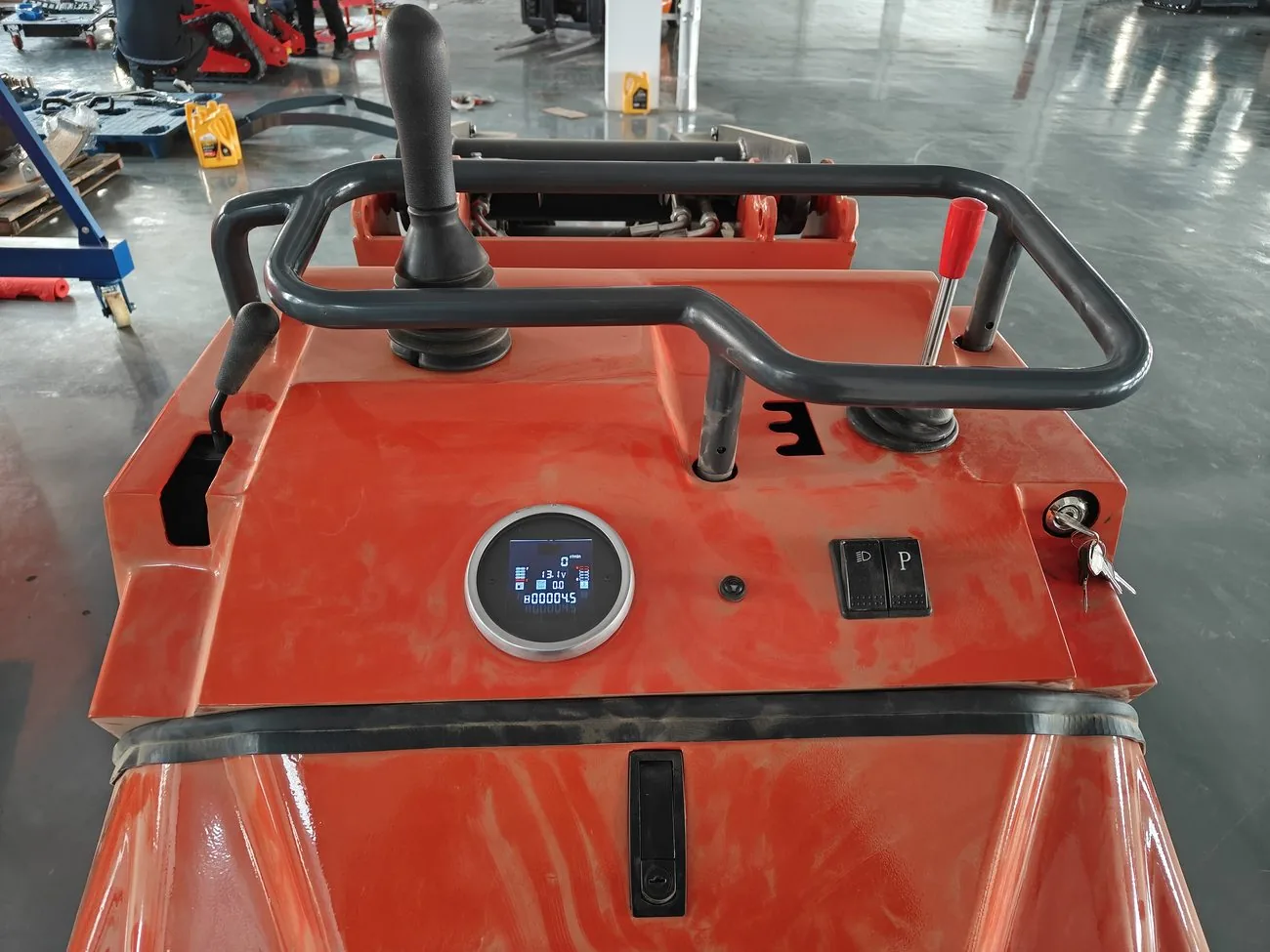

Clear, Practical Controls
The standing operator area groups the joystick controls, digital display, switches and ignition for direct machine operation.
07 / Structure

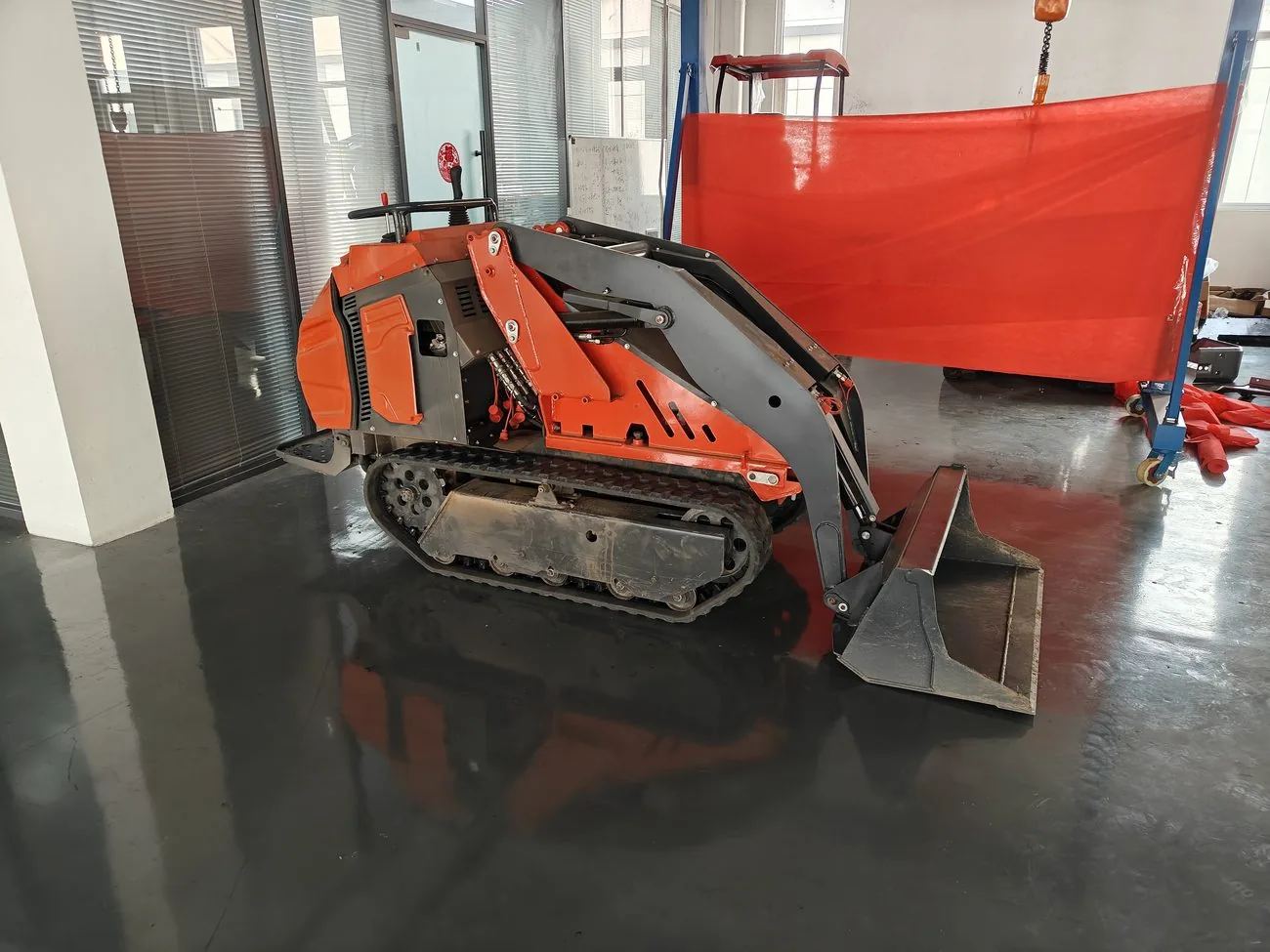

Durable Frame Structure
The compact loader frame, protected components and reinforced lift-arm arrangement are designed for repeated loading and attachment work.
08 / Multi-Function Work

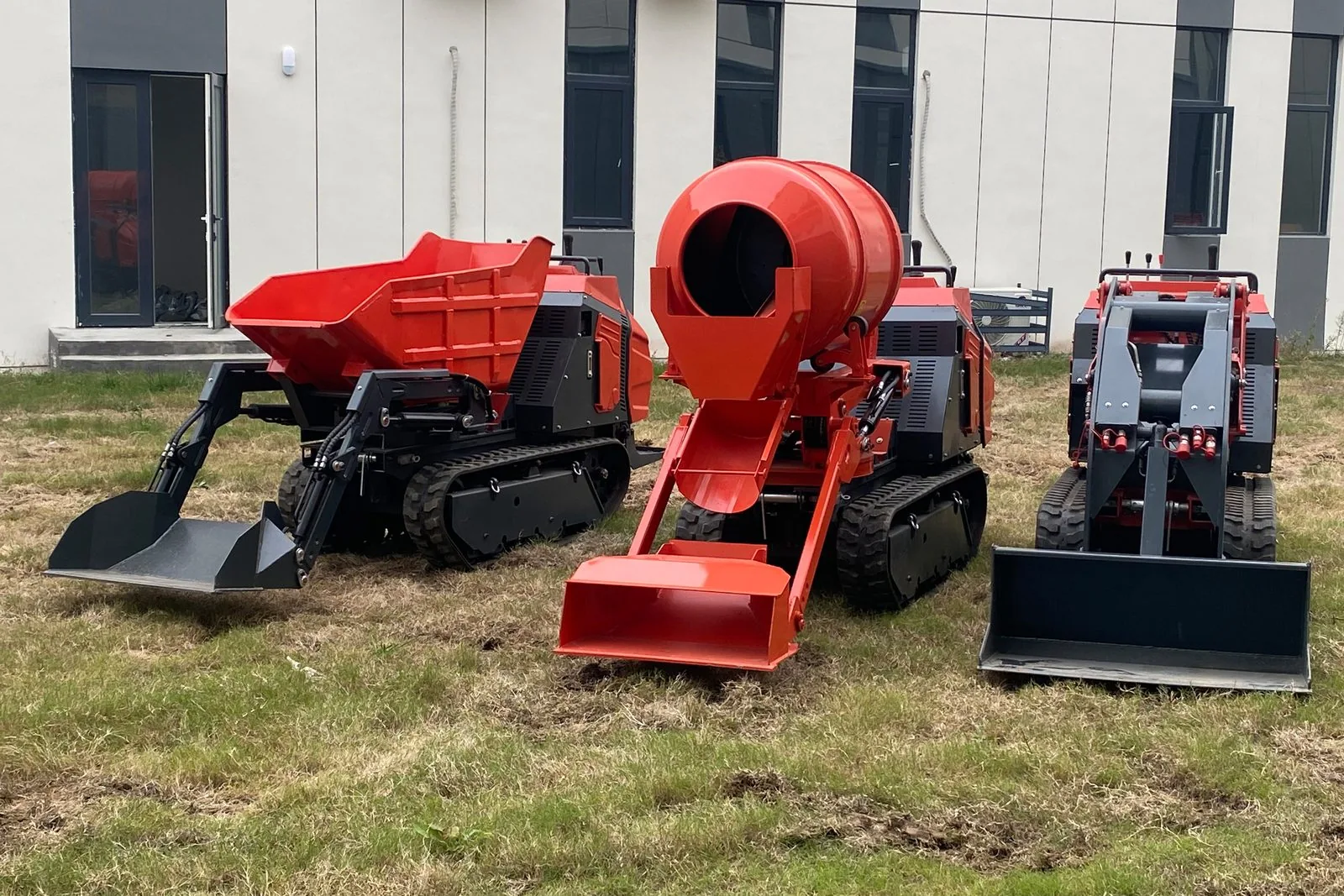

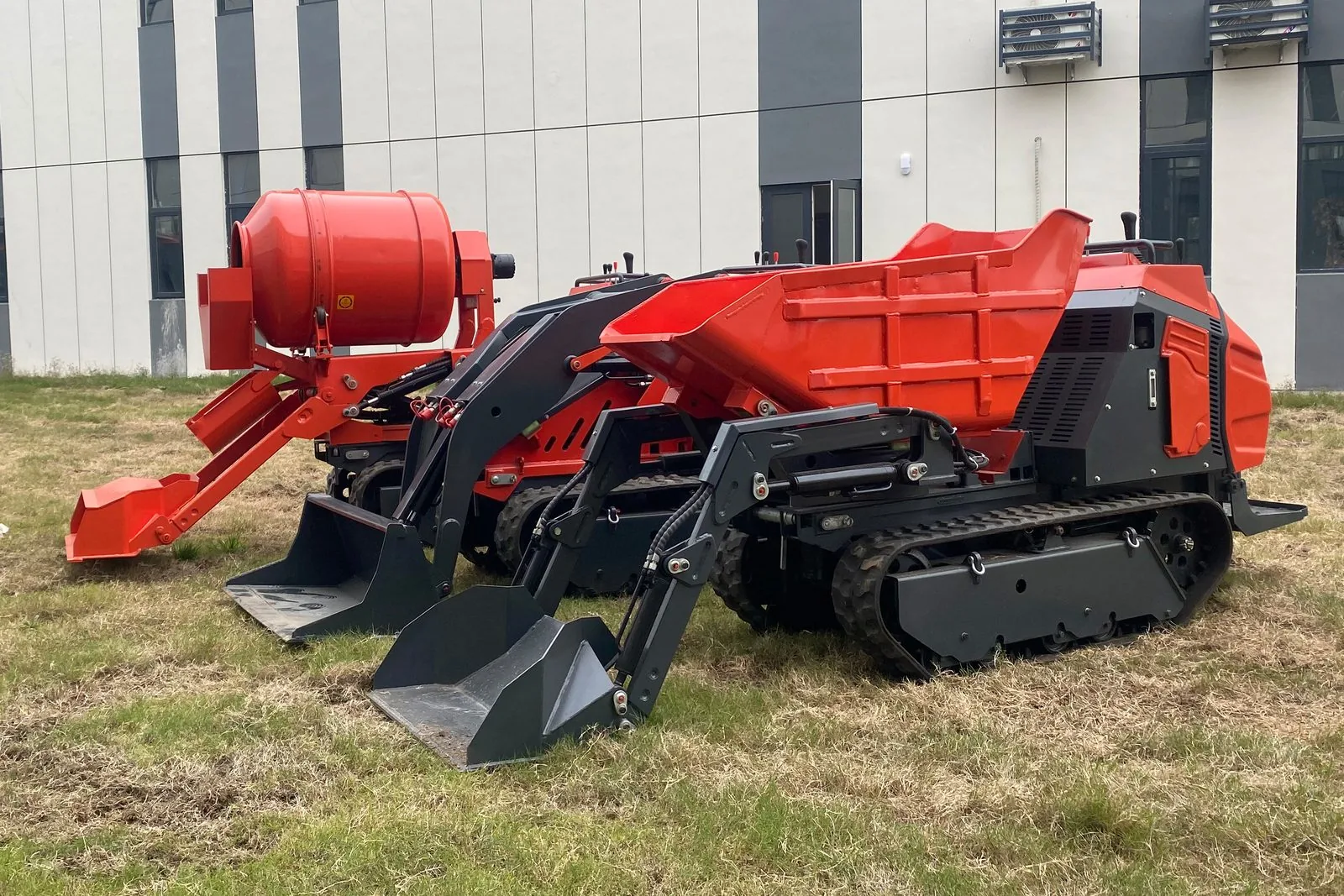

Multiple Work Configurations
Bucket, dump and mixer examples demonstrate how the C1200 platform can be configured for different construction, landscaping and agricultural tasks.
Technical Specifications
C1200 Performance and Machine Data
Values below follow the supplied brochure and confirmed Kubota D1105 / 17.1 kW engine information. Configuration-dependent hydraulic details should be confirmed in the quotation.
Engine
Engine modelKubota D1105
Rated power17.1 kW
Cylinders3
Fuel typeDiesel
Intake methodNatural aspiration
Emission optionsEPA / Euro 5
Fuel tank32 L
Hydraulic System
Working pressure18.8 MPa
Hydraulic pumpTo be confirmed
Travel motorTo be confirmed
Auxiliary hydraulic flowTo be confirmed
Attachment interfaceConfiguration dependent
Performance
Operating weight1310 kg
Rated load440 kg
Maximum load500 kg
Bucket capacity0.15 m³
Maximum breakout force4.5 kN
Travel speed0-6 km/h
Climbing ability25 degree
Work cycle9 s
Undercarriage & Standard Data
Track specification200 x 49 x 72
Ground clearance203 mm
Track contact length1664 mm
Bucket width1045 mm
Standard bucket0.15 m³
Dimensions & Working Range
Overall dimensions2867 x 1045 x 1499 mm
Length excluding bucket2034 mm
Maximum loading height1980 mm
Maximum dumping height1704 mm
Maximum operating height2606 mm
Height to bucket pin2155 mm
Dump angle63 degree
Tail length500 mm
Dumping distance833 mm
Gallery / At Work

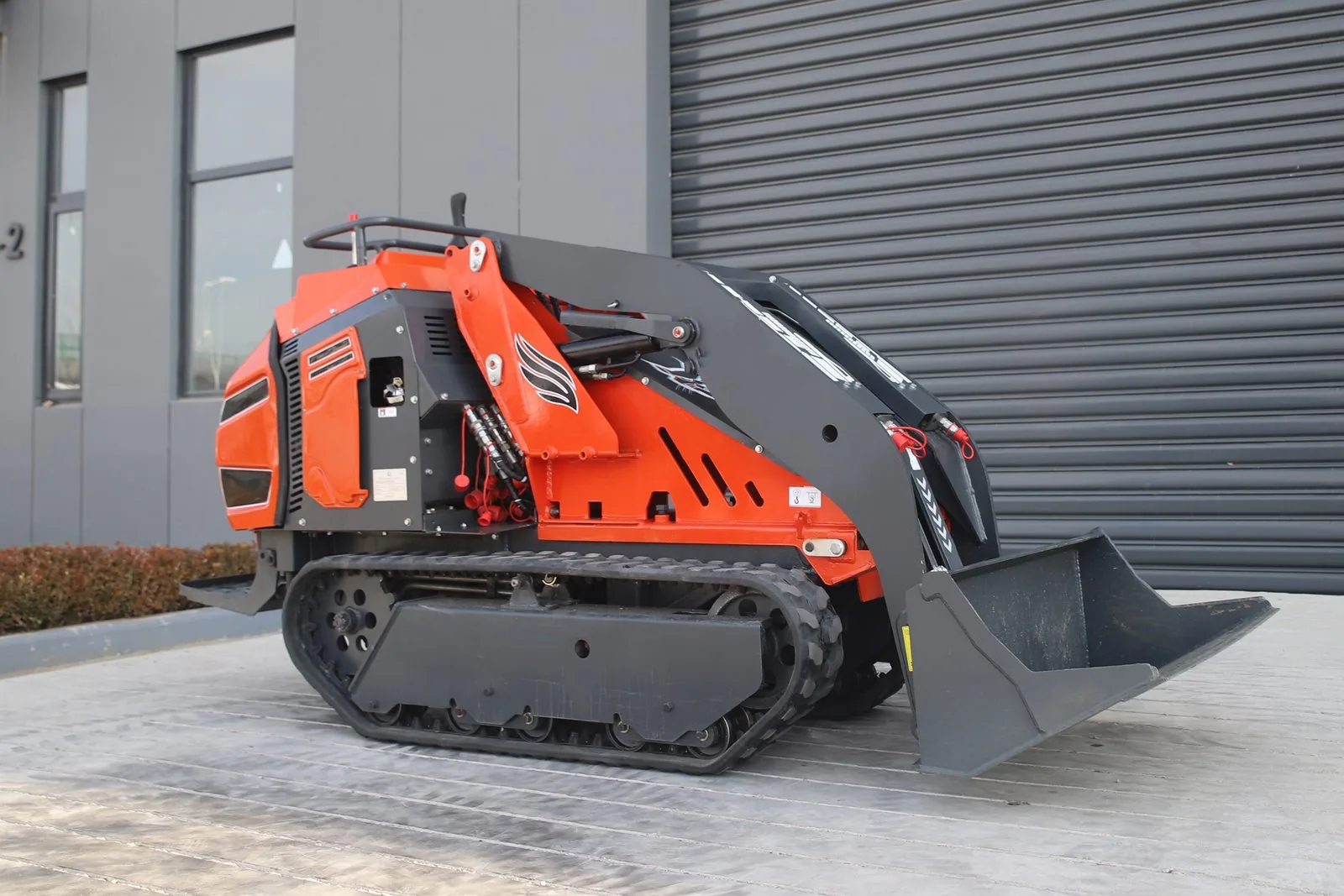

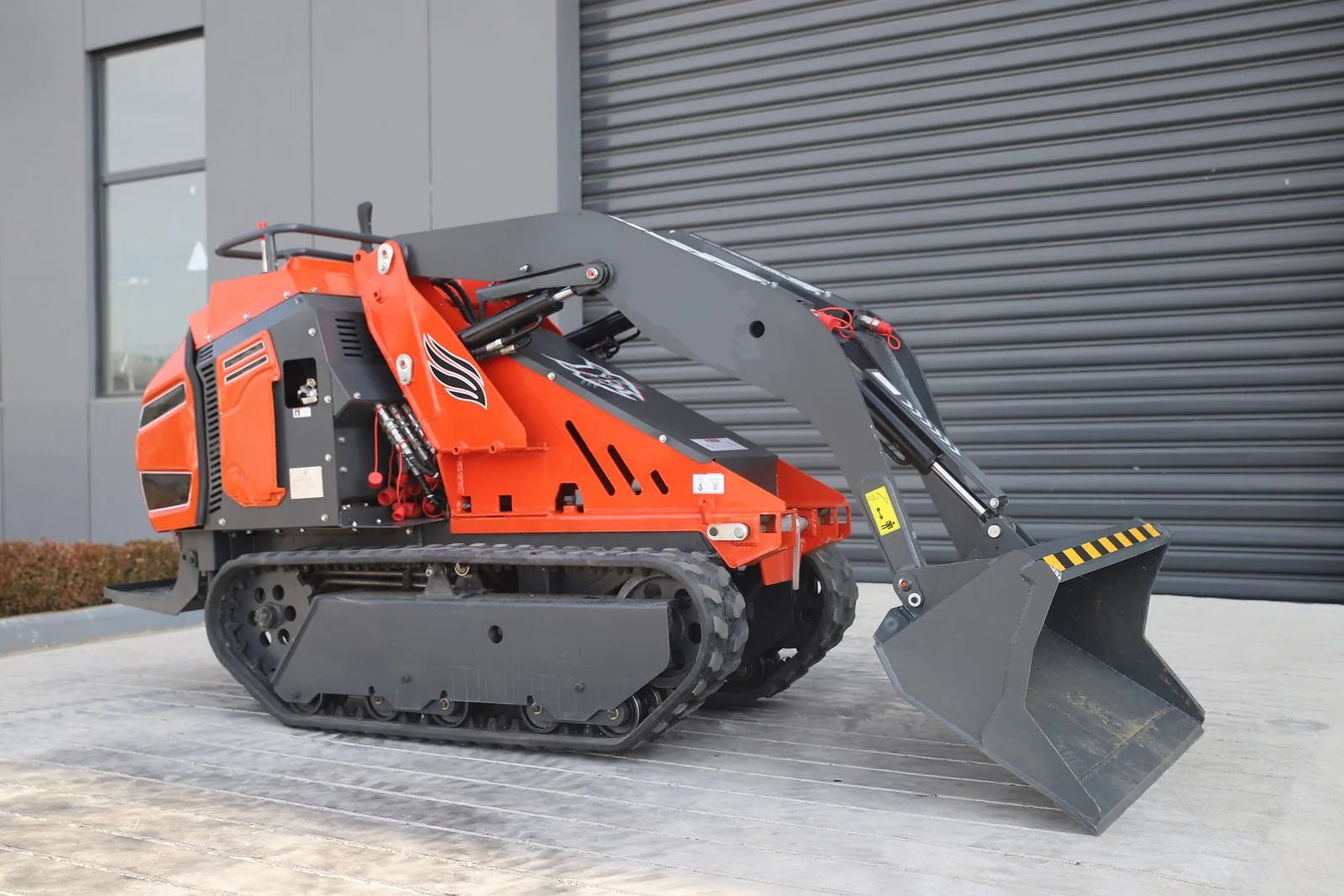

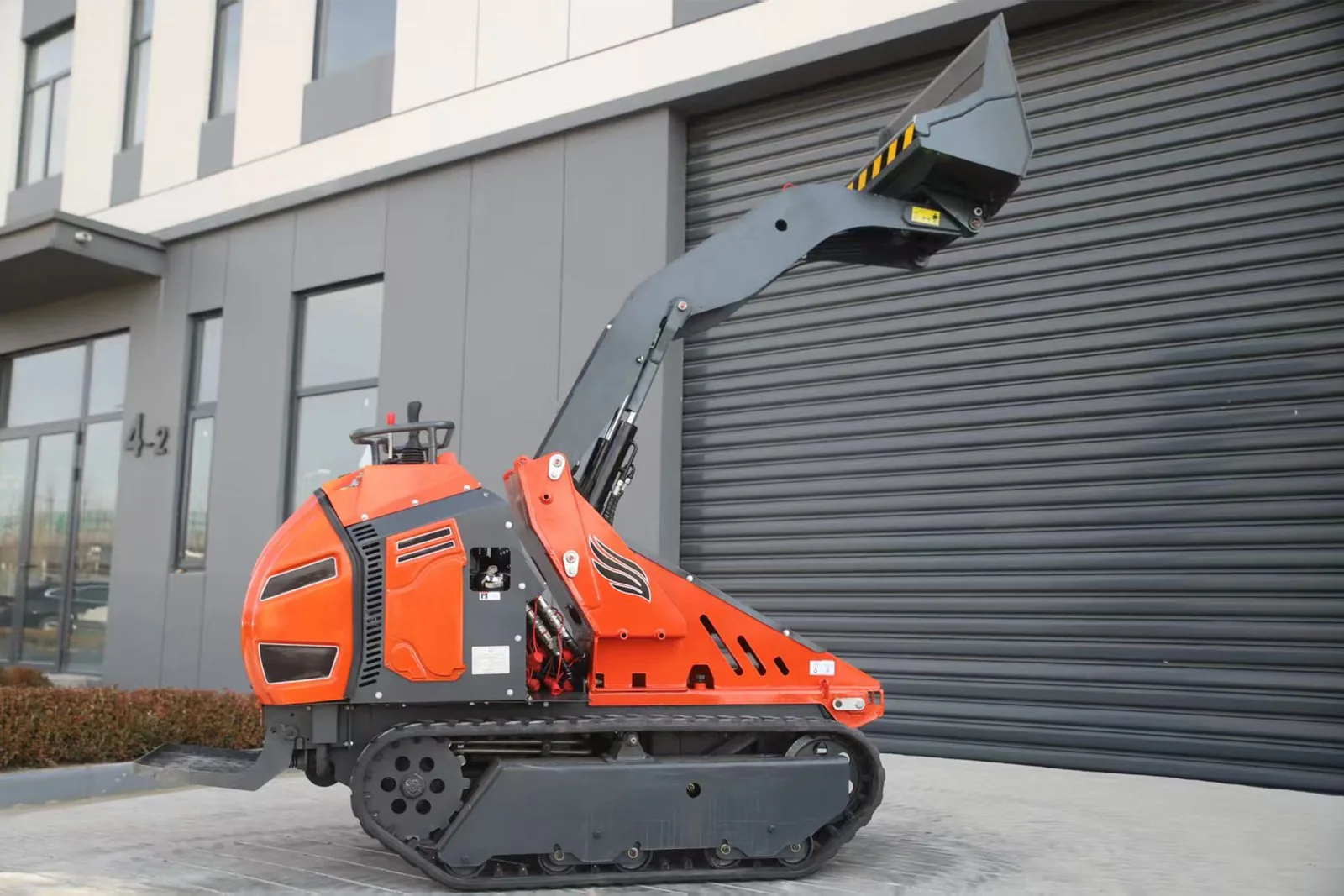

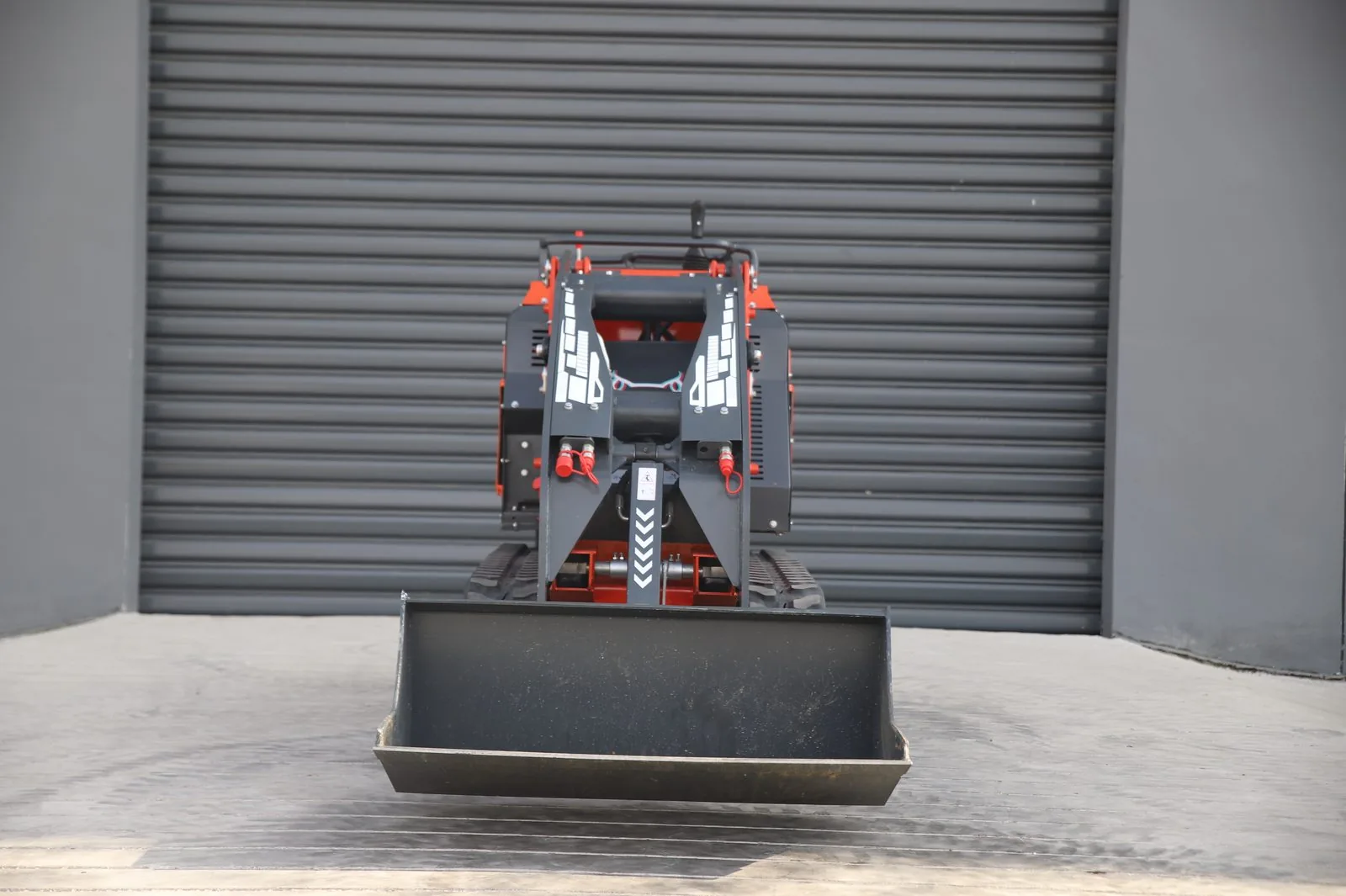

C1200 Product Views and Configurations
Review the compact chassis, lift range, front working geometry and multifunction configurations from different angles.
FAQ
Questions About the C1200
Information for contractors, dealers, farms and equipment buyers comparing a compact tracked multi-function loader.
What is the C1200 compact tracked loader used for?
The C1200 is designed for loading, material handling and configurable attachment work in construction, landscaping, agriculture and property maintenance.
Is the C1200 suitable for narrow job sites?
Yes. The listed overall width is 1045 mm, making the compact crawler loader suitable for many restricted-access work areas. Buyers should still measure gates and transport access before ordering.
What attachments can be used with the C1200?
Options may include buckets, augers, trenchers, grapples, pallet forks, blades, sweepers and mowers. Hydraulic flow, pressure and interface compatibility must be confirmed for each attachment.
Can the C1200 be used for landscaping and agriculture?
Yes. Its crawler chassis and multi-function configuration make it relevant to landscape material handling, grading preparation, farm maintenance and agricultural support work.
Can you provide OEM color customization?
OEM color and branding options can be discussed for dealer and batch orders. Share the required color reference, quantity and logo files for confirmation.
Do you provide export support and spare parts service?
Yes. KORVA can support export documentation, packing coordination and spare-parts planning according to the order and destination market.
Packing & Shipping
Compact tracked loader packing photos and export delivery support
KORVA can provide C1200 compact tracked loader packing photos, loading preparation and overseas delivery updates for buyers planning attachment-based work.
Export Wooden Packing
Each skid steer loader is securely packed to help protect key components during sea transportation.

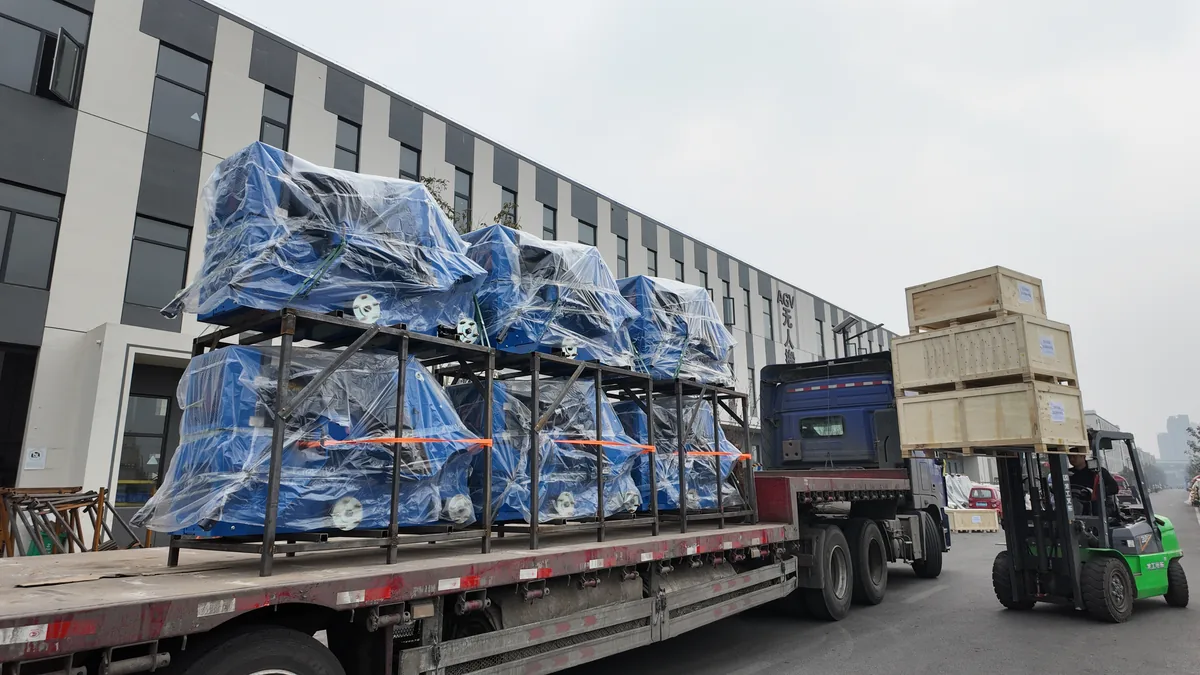

Container Loading
Professional loading helps improve container space use and supports safer overseas shipment.

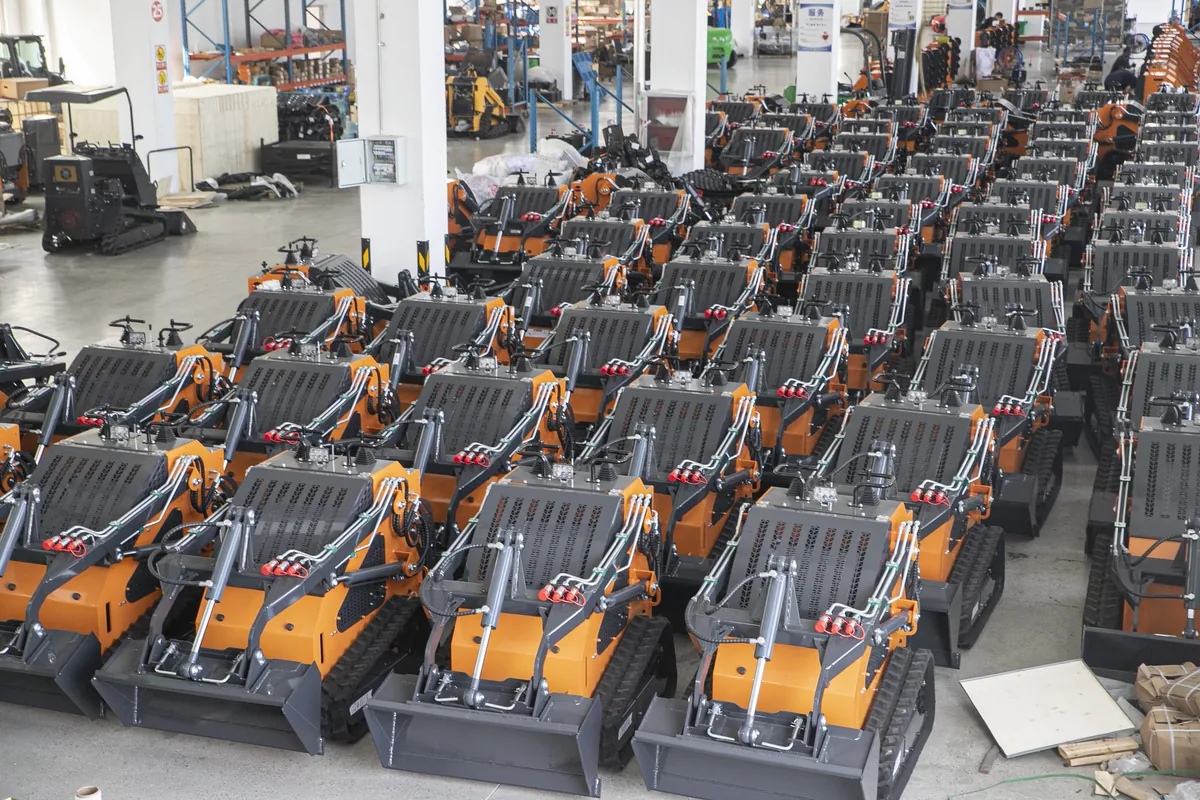

Ready for Overseas Delivery
Packed machines are prepared for shipment with organized loading arrangements for overseas buyers.
